SKU: UCFCX05-16

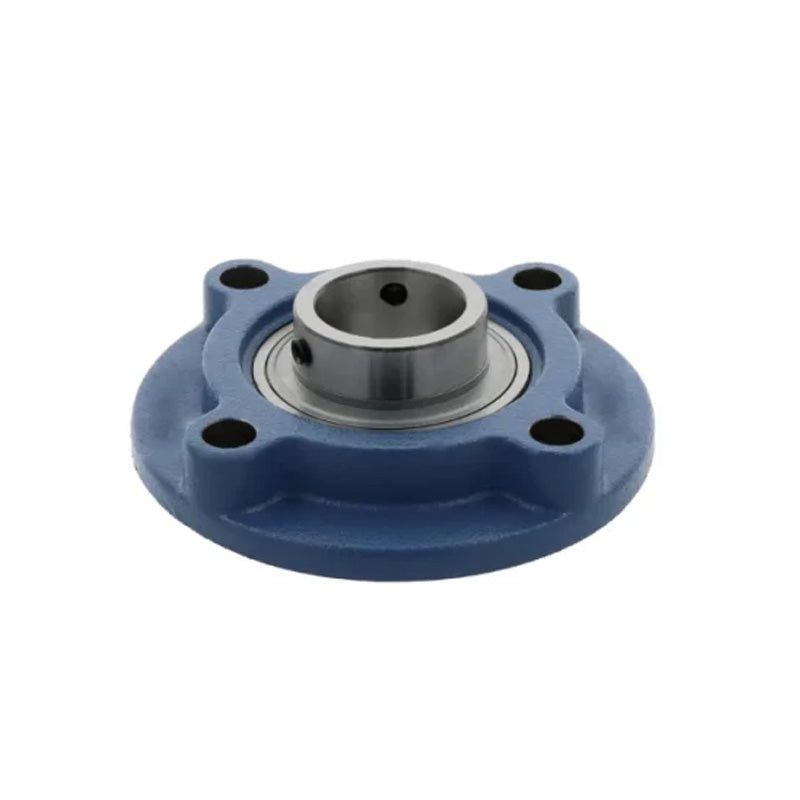

UCFCX05-16 Imperial Four Bolt Cast Iron Round Flanged Housing with 1 inch Insert
UCFCX05-16 Imperial Four Bolt Cast Iron Round Flanged Housing with 1 inch Insert
Regular price
€15,13
ex VAT
Regular price
Sale price
€15,13
ex VAT
In stock
Price Break
10+
€13,47
19+
€12,71
29+
€12,56
39+
€12,41
49+
€12,26
74+
€12,10
99+
€11,35
199+
€11,20
249+
€11,04
499+
€10,89
999+
€10,59
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCFCX
- Pitch Circle Diameter:
- 65.09mm = 2.563 (2-9/16) inch
Technical
Technical
| d | 1 inch |
|---|---|
| a | 4-3/8 inch |
| p | 3-5/8 inch |
| (e) | 2-9/16 inch |
| i | 25/64 inch |
| s | 3/8 inch |
| j | 15/64 inch |
| k | 3/8 inch |
| g | 15/16 inch |
| f | 2.9921 inch |
| z | 1-9/32 inch |
| B | 1.5 inch |
| n | 0.626 inch |
| Bolt size | 5/16 inch |
| Bearing no | UCX05-16 |
| Housing no | FCX05 |
| Weight | 1.1 kg |
