SKU: UCFCX09

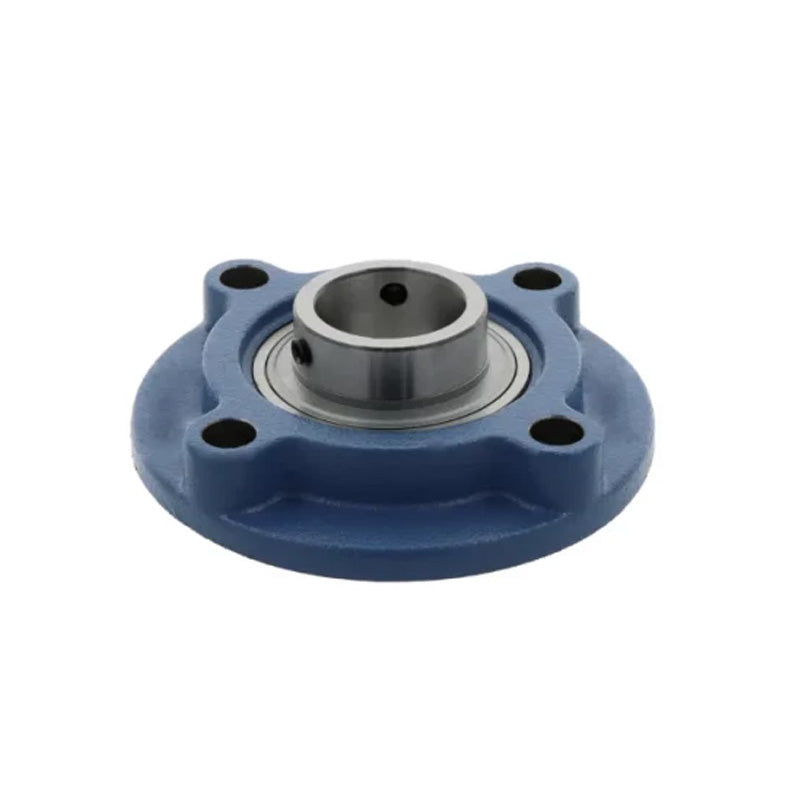

UCFCX09 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
UCFCX09 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
Regular price
€41,01
ex VAT
Regular price
Sale price
€41,01
ex VAT
In stock
Price Break
10+
€36,50
19+
€34,45
29+
€34,04
39+
€33,63
49+
€33,22
74+
€32,81
99+
€30,76
199+
€30,35
249+
€29,94
499+
€29,53
999+
€28,71
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 91.9mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 155mm |
| p | 130mm |
| (e) | 91.9mm |
| i | 8mm |
| s | 14mm |
| j | 12mm |
| k | 11mm |
| g | 25mm |
| f | 108mm |
| z | 40.6mm |
| B | 51.6mm |
| n | 19mm |
| Bolt size | M12 |
| Bearing no | UCX09 |
| Housing no | FCX09 |
| Weight | 2.4 kg |
