SKU: UCFCX09-26

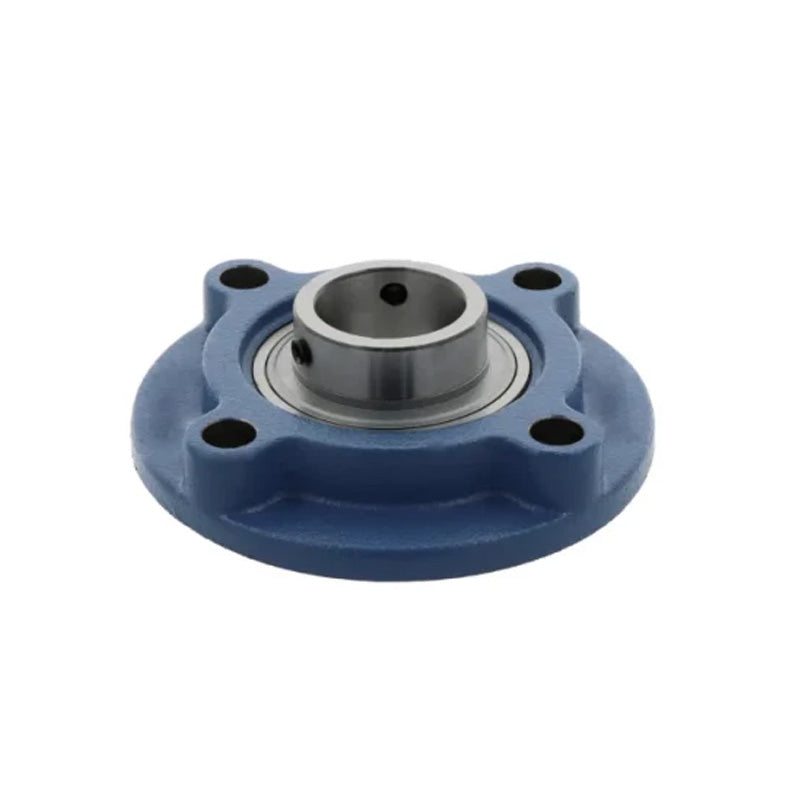

UCFCX09-26 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-5/8 inch Insert
UCFCX09-26 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-5/8 inch Insert
Regular price
€69,21
ex VAT
Regular price
Sale price
€69,21
ex VAT
In stock
Price Break
10+
€61,60
19+
€58,14
29+
€57,44
39+
€56,75
49+
€56,06
74+
€55,37
99+
€51,91
199+
€51,22
249+
€50,52
499+
€49,83
999+
€48,45
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCFCX
- Pitch Circle Diameter:
- 92.08mm = 3.625 (3-5/8) inch
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| a | 6-3/32 inch |
| p | 5-1/8 inch |
| (e) | 3-5/8 inch |
| i | 5/16 inch |
| s | 35/64 inch |
| j | 15/32 inch |
| k | 7/16 inch |
| g | 63/64 inch |
| f | 4.252 inch |
| z | 1-19/32 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bolt size | 7/16 inch |
| Bearing no | UCX09-26 |
| Housing no | FCX09 |
| Weight | 2.4 kg |
