SKU: UCFCX10

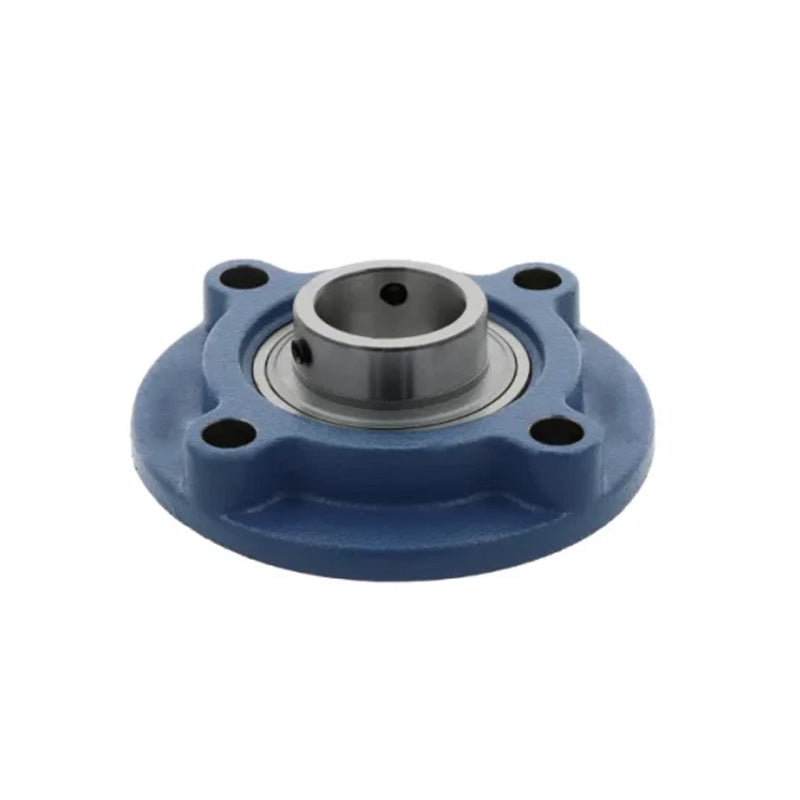

UCFCX10 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert
UCFCX10 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert
Regular price
€44,82
ex VAT
Regular price
Sale price
€44,82
ex VAT
In stock
Price Break
10+
€39,89
19+
€37,65
29+
€37,20
39+
€36,75
49+
€36,30
74+
€35,86
99+
€33,62
199+
€33,17
249+
€32,72
499+
€32,27
999+
€31,37
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 96.2mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 162mm |
| p | 136mm |
| (e) | 96.2mm |
| i | 7mm |
| s | 14mm |
| j | 16mm |
| k | 11mm |
| g | 25mm |
| f | 118mm |
| z | 40.4mm |
| B | 55.6mm |
| n | 22.2mm |
| Bolt size | M12 |
| Bearing no | UCX10 |
| Housing no | FCX10 |
| Weight | 2.9 kg |
