SKU: UCFCX10D1-NTN

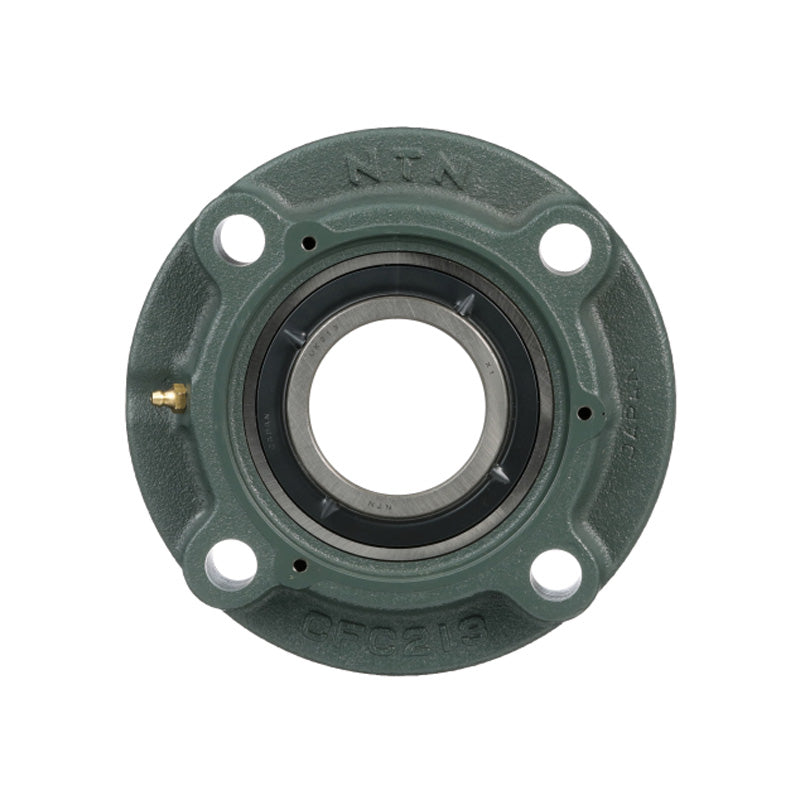

NTN UCFCX10D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
NTN UCFCX10D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
Regular price
€68,23
ex VAT
Regular price
Sale price
€68,23
ex VAT
In stock
Price Break
10+
€60,72
19+
€57,31
29+
€56,63
39+
€55,95
49+
€55,27
74+
€54,58
99+
€51,17
199+
€50,49
249+
€49,81
499+
€49,13
999+
€47,76
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 96.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| L | 162mm |
| J | 136mm |
| (J<sub>1</sub>) | 96.2mm |
| A<sub>2</sub> | 7mm |
| N | 14mm |
| A<sub>3</sub> | 16mm |
| A<sub>1</sub> | 25mm |
| A | 41mm |
| H<sub>3</sub> | 118mm |
| A<sub>0</sub> | 56.4mm |
| B | 55.6mm |
| S | 22.2mm |
| F (Min.) | 75mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 3.1 kg |
