SKU: UCFCX13

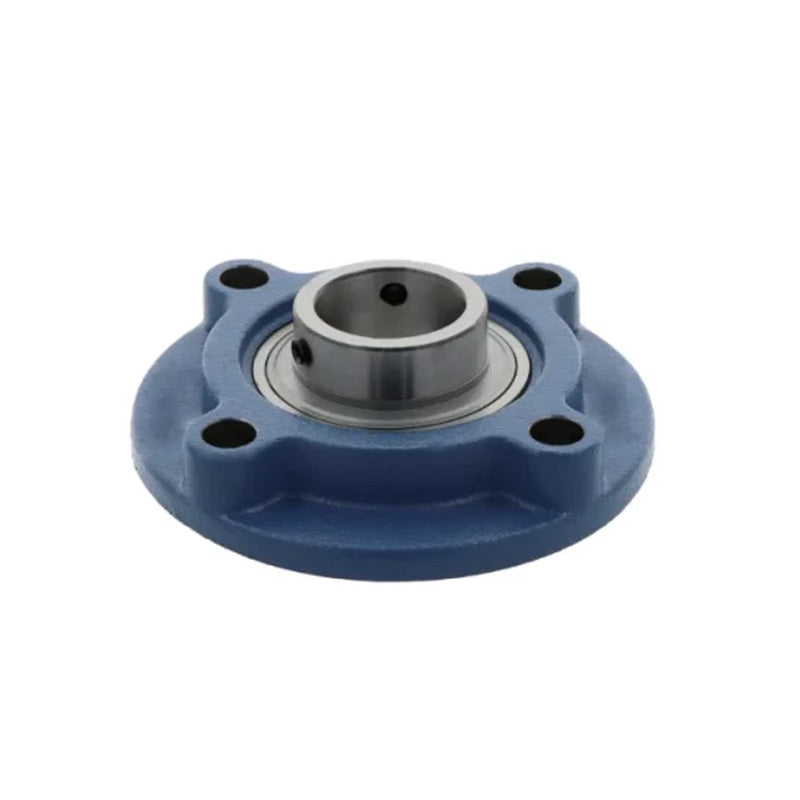

UCFCX13 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert
UCFCX13 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert
Regular price
€54,73
ex VAT
Regular price
Sale price
€54,73
ex VAT
In stock
Price Break
10+
€48,71
19+
€45,97
29+
€45,43
39+
€44,88
49+
€44,33
74+
€43,78
99+
€41,05
199+
€40,50
249+
€39,95
499+
€39,41
999+
€38,31
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 194mm |
| p | 165mm |
| (e) | 116.7mm |
| i | 11mm |
| s | 16mm |
| j | 20mm |
| k | 14mm |
| g | 33mm |
| f | 140mm |
| z | 55.4mm |
| B | 74.6mm |
| n | 30.2mm |
| Bolt size | M14 |
| Bearing no | UCX13 |
| Housing no | FCX13 |
| Weight | 4.9 kg |
