SKU: UCFCX17

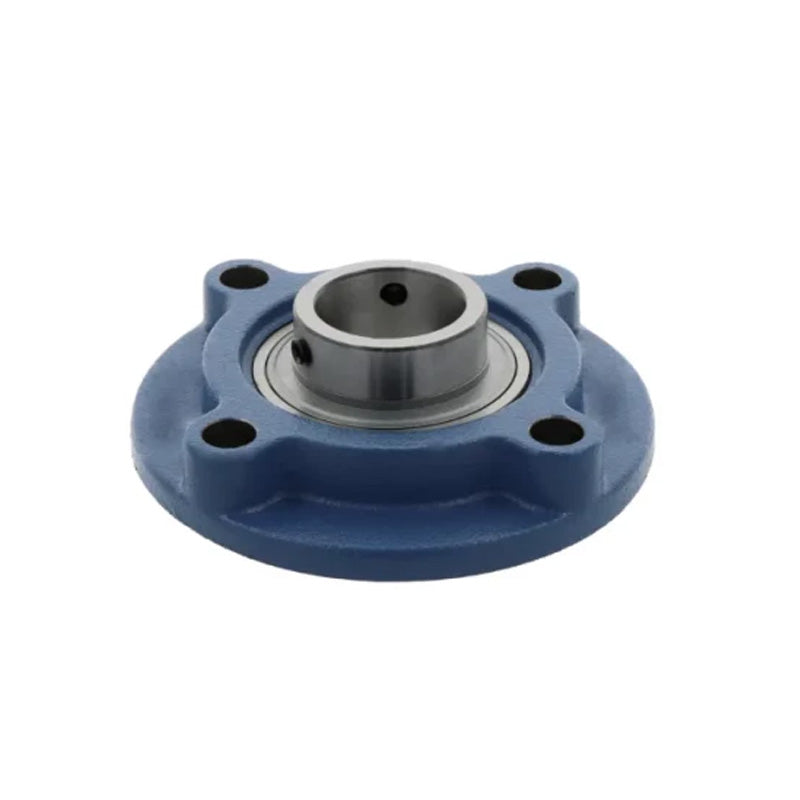

UCFCX17 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert
UCFCX17 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert
Regular price
€179,22
ex VAT
Regular price
Sale price
€179,22
ex VAT
In stock
Price Break
10+
€159,51
19+
€150,54
29+
€148,75
39+
€146,96
49+
€145,17
74+
€143,38
99+
€134,42
199+
€132,62
249+
€130,83
499+
€129,04
999+
€125,45
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 154.8mm
Technical
Technical
| d | 85mm |
|---|---|
| a | 260mm |
| p | 219mm |
| (e) | 154.8mm |
| i | 10mm |
| s | 23mm |
| j | 25mm |
| k | 19mm |
| g | 36mm |
| f | 186mm |
| z | 66.3mm |
| B | 96mm |
| n | 39.7mm |
| Bolt size | M20 |
| Bearing no | UCX17 |
| Housing no | FCX17 |
| Weight | 11.4 kg |
