SKU: UCFL.207-20

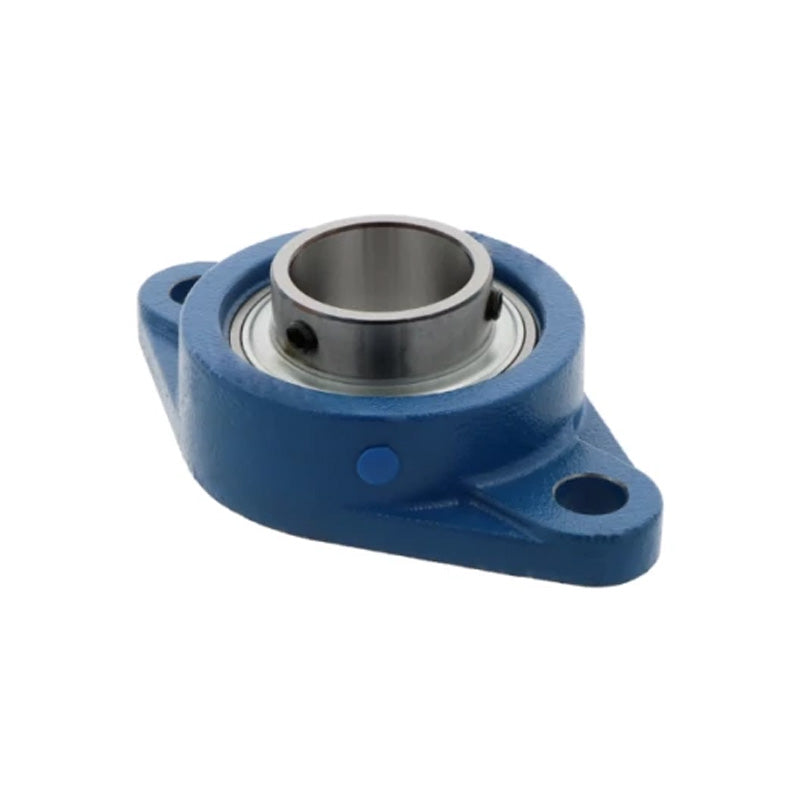

UCFL207-20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/4 inch Bore Insert
UCFL207-20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/4 inch Bore Insert
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
Equivalent to: SFT1-1/4
In stock
Price Break
3+
€9,40
4+
€8,87
9+
€8,76
19+
€8,66
49+
€8,55
99+
€8,45
499+
€7,92
999+
€7,81
1999+
€7,71
2999+
€7,60
4999+
€7,39
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT1-1/4
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| S | 16mm |
| b | 90mm |
| z | 44.4mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
