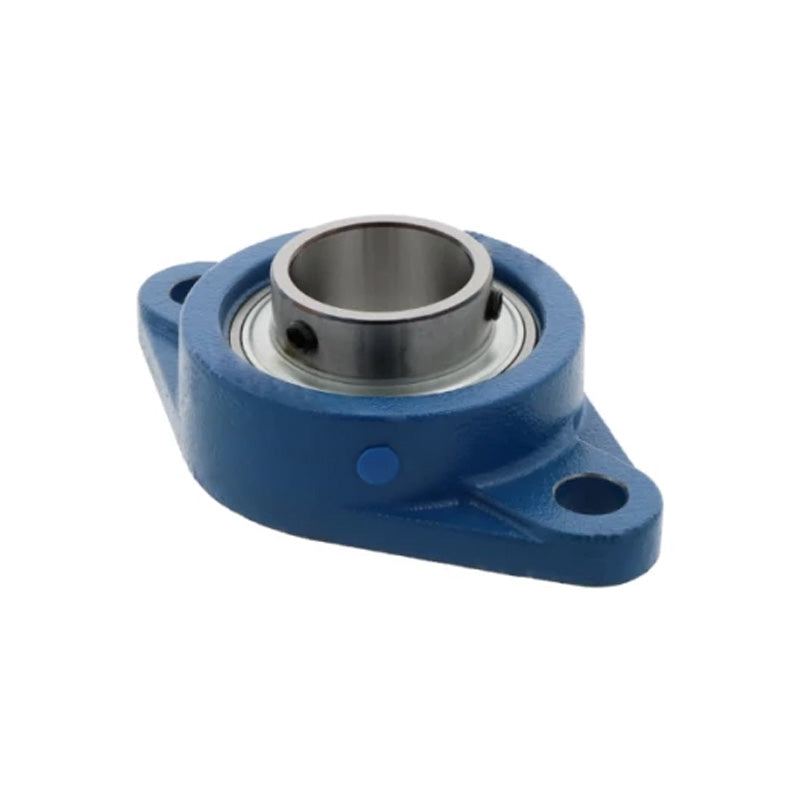

UCFL210-32 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert
UCFL210-32 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert
Regular price
€21,95
ex VAT
Regular price
Sale price
€21,95
ex VAT
In stock
Price Break
3+
€16,20
4+
€15,29
9+
€15,11
19+
€14,92
49+
€14,74
99+
€14,56
499+
€13,65
999+
€13,47
1999+
€13,29
2999+
€13,10
4999+
€12,74
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 2 inch |
|---|---|
| a | 197mm |
| e | 157mm |
| i | 22mm |
| g | 15mm |
| L | 40mm |
| S | 19mm |
| b | 115mm |
| z | 54.6mm |
| B1 | 51.6mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.2 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
