SKU: UCFL.212

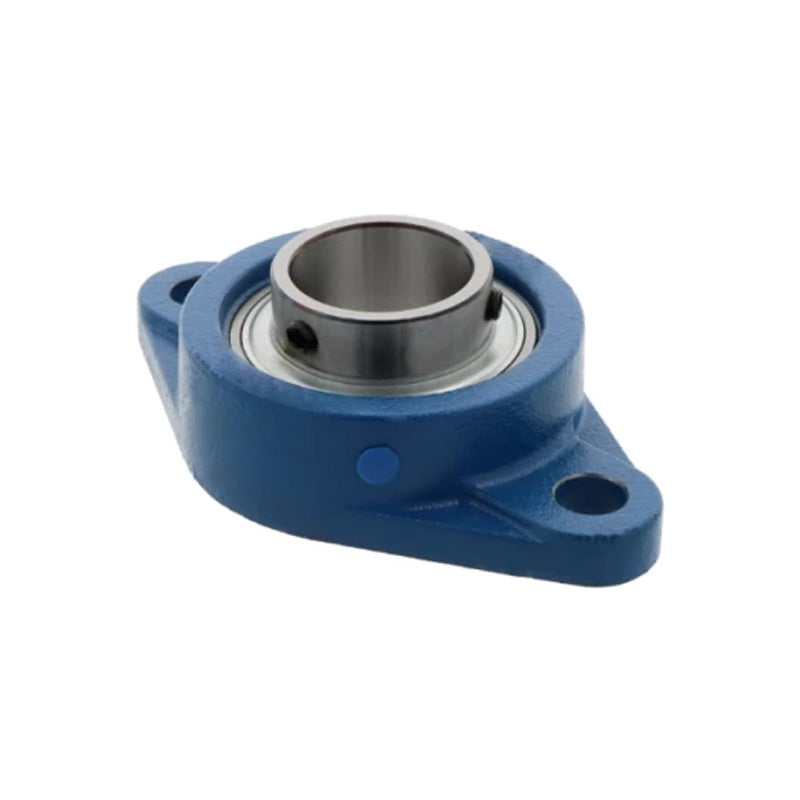

UCFL212 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert
UCFL212 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert
Regular price
€57,46
ex VAT
Regular price
Sale price
€57,46
ex VAT
Equivalent to: SFT60
In stock
Price Break
10+
€51,14
19+
€48,27
29+
€47,69
39+
€47,12
49+
€46,54
74+
€45,97
99+
€43,10
199+
€42,52
249+
€41,95
499+
€41,37
999+
€40,22
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT60
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCFL
- Bolt Hole Centres:
- 202mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 250mm |
| e | 202mm |
| i | 29mm |
| g | 18mm |
| L | 48mm |
| S | 23mm |
| b | 140mm |
| z | 68.7mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M20 |
| Weight | 4.1 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
