SKU: UCFL.212-38

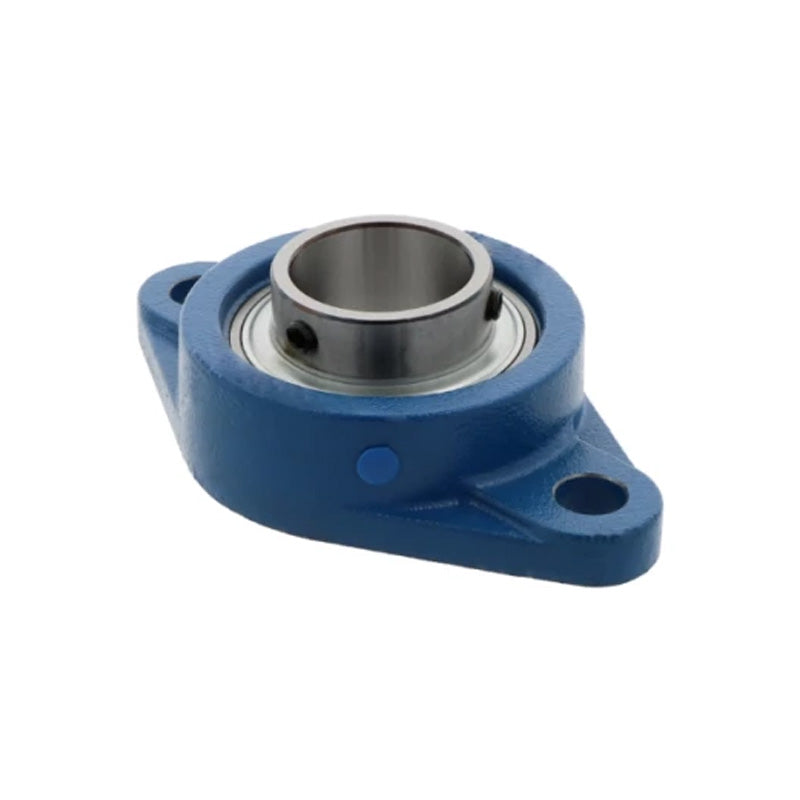

UCFL212-38 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/8 inch Bore Insert
UCFL212-38 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/8 inch Bore Insert
Regular price
€79,95
ex VAT
Regular price
Sale price
€79,95
ex VAT
In stock
Price Break
3+
€60,60
4+
€57,19
9+
€56,51
19+
€55,83
49+
€55,15
99+
€54,47
499+
€51,06
999+
€50,38
1999+
€49,70
2999+
€49,02
4999+
€47,66
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 202mm
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| a | 250mm |
| e | 202mm |
| i | 29mm |
| g | 18mm |
| L | 48mm |
| S | 23mm |
| b | 140mm |
| z | 68.7mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M20 |
| Weight | 4.1 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
