SKU: UCFL.212.TS.CHAL

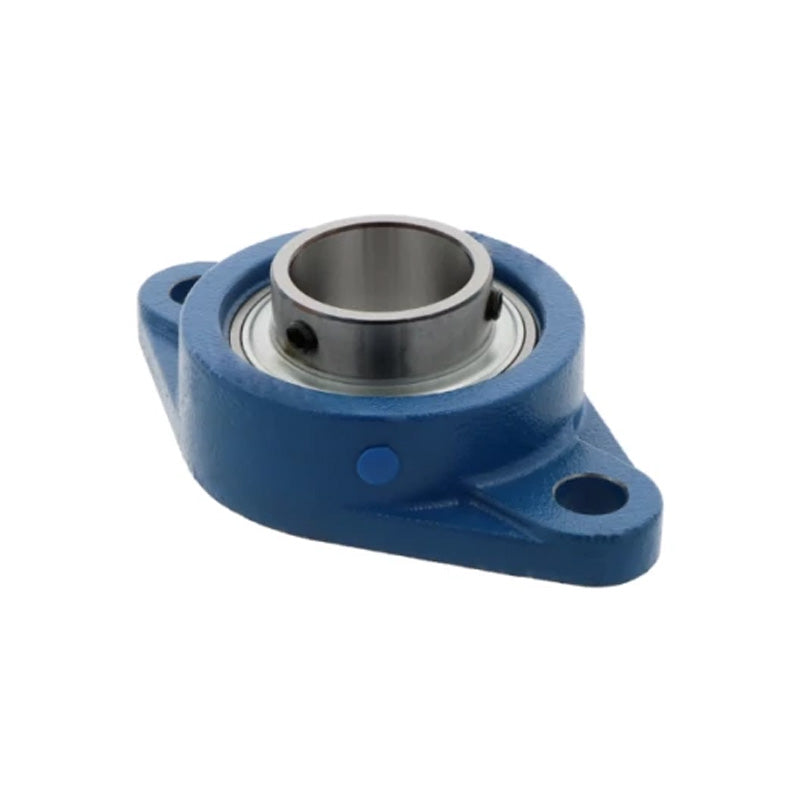

Challenge / FK UCFL212 Metric Cast Iron Two Bolt Oval Flange Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFL212 Metric Cast Iron Two Bolt Oval Flange Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€129,95
ex VAT
Regular price
Sale price
€129,95
ex VAT
Equivalent to: UCFL.212
In stock
Price Break
3+
€98,57
5+
€93,03
9+
€91,93
19+
€90,82
49+
€89,71
74+
€88,60
99+
€83,07
199+
€81,96
249+
€80,85
499+
€79,74
999+
€77,53
Share this product
Description
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFL.212
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 60mm
- Style:
- UCFL
- Bolt Hole Centres:
- 202mm
Technical
Technical
| Shaft Diameter d | 60mm |
|---|---|
| Casting Length a | 250mm |
| Recommended Bolt Centres L | 202mm |
| Back of Casting to Centre Line of Bearing i | 29mm |
| Depth of Casting at Bolt g | 18mm |
| Overall Casting Height l | 48mm |
| Bolt Hole Diameter s | 23mm |
| Casting Width b | 140mm |
| Back of Casting to Bearing Front z | 68.7mm |
| Bearing Insert Width Bi | 65.1mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Bolt Size | M20 |
| Grub Screws x 2 | M10x1.25mm |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC212 |
| Housing No | FL212 |
