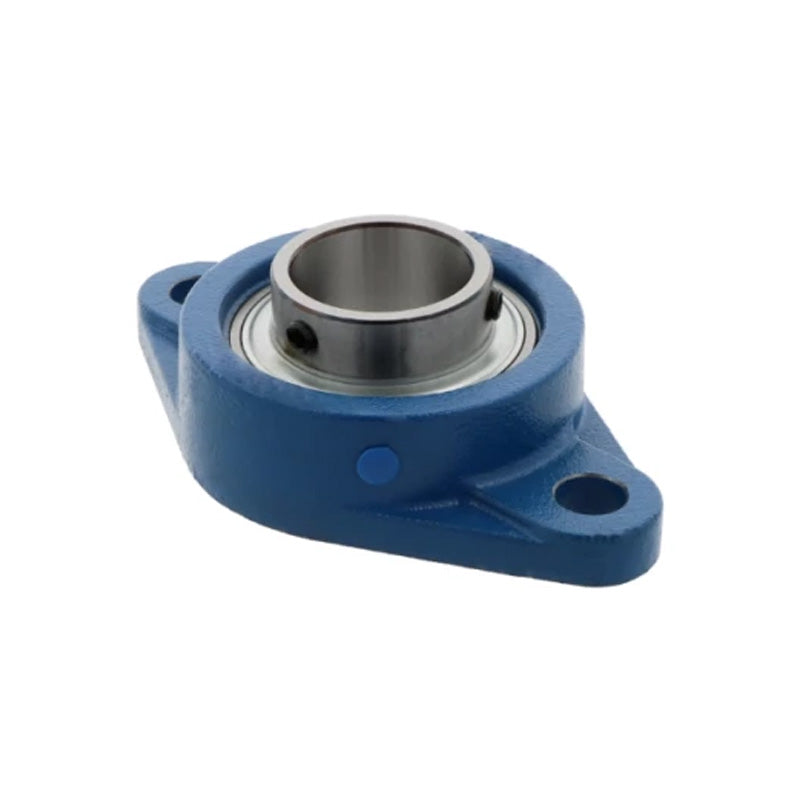

UCFL310 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 50mm Bore
UCFL310 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 50mm Bore
Regular price
€69,27
ex VAT
Regular price
Sale price
€69,27
ex VAT
In stock
Price Break
10+
€61,65
19+
€58,19
29+
€57,49
39+
€56,80
49+
€56,11
74+
€55,42
99+
€51,95
199+
€51,26
249+
€50,57
499+
€49,87
999+
€48,49
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 187mm

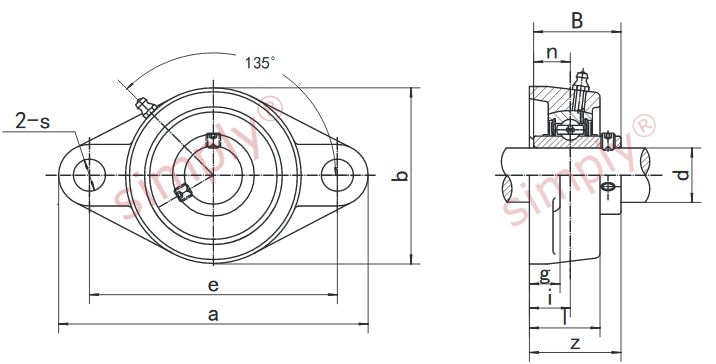

Technical
Technical
| d | 50mm |
|---|---|
| a | 240mm |
| e | 187mm |
| i | 28mm |
| g | 19mm |
| l | 48mm |
| s | 25mm |
| b | 140mm |
| z | 67mm |
| B | 61mm |
| n | 22mm |
| Bolt size | M22 |
| Bearing no | UC310 |
| Housing no | FL310 |
| Weight | 3.993 kg |
