SKU: UCFL311

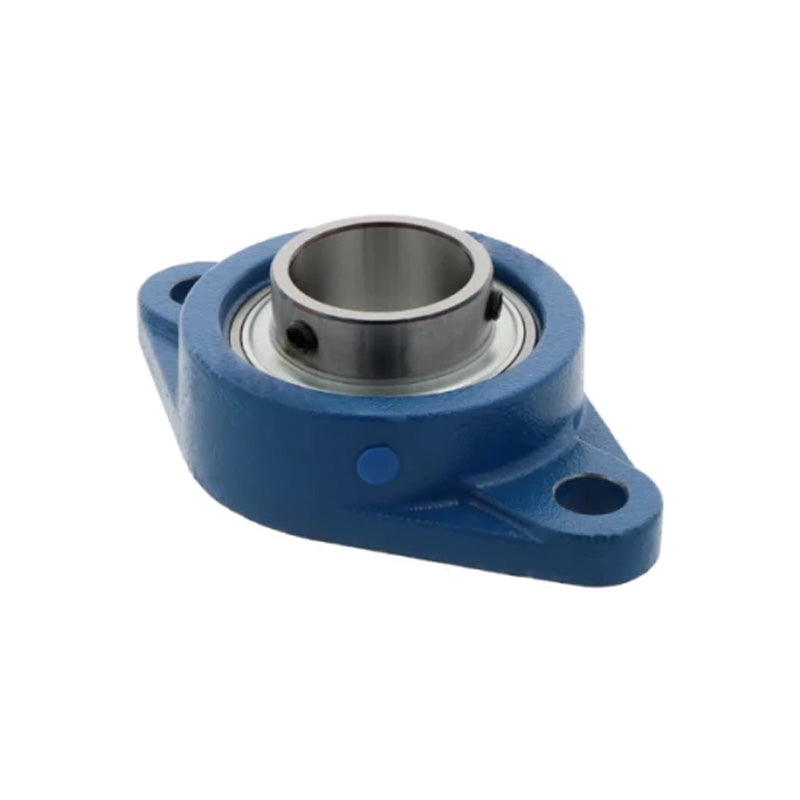

UCFL311 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 55mm Bore
UCFL311 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 55mm Bore
Regular price
€98,00
ex VAT
Regular price
Sale price
€98,00
ex VAT
In stock
Price Break
10+
€87,22
19+
€82,32
29+
€81,34
39+
€80,36
49+
€79,38
74+
€78,40
99+
€73,50
199+
€72,52
249+
€71,54
499+
€70,56
999+
€68,60
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCFL
- Bolt Hole Centres:
- 198mm
Technical
Technical
| d | 55mm |
|---|---|
| a | 250mm |
| e | 198mm |
| i | 30mm |
| g | 20mm |
| l | 52mm |
| s | 25mm |
| b | 150mm |
| z | 71mm |
| B | 66mm |
| n | 25mm |
| Bolt size | M22 |
| Bearing no | UC311 |
| Housing no | FL311 |
| Weight | 4.79 kg |
