SKU: UCFL315

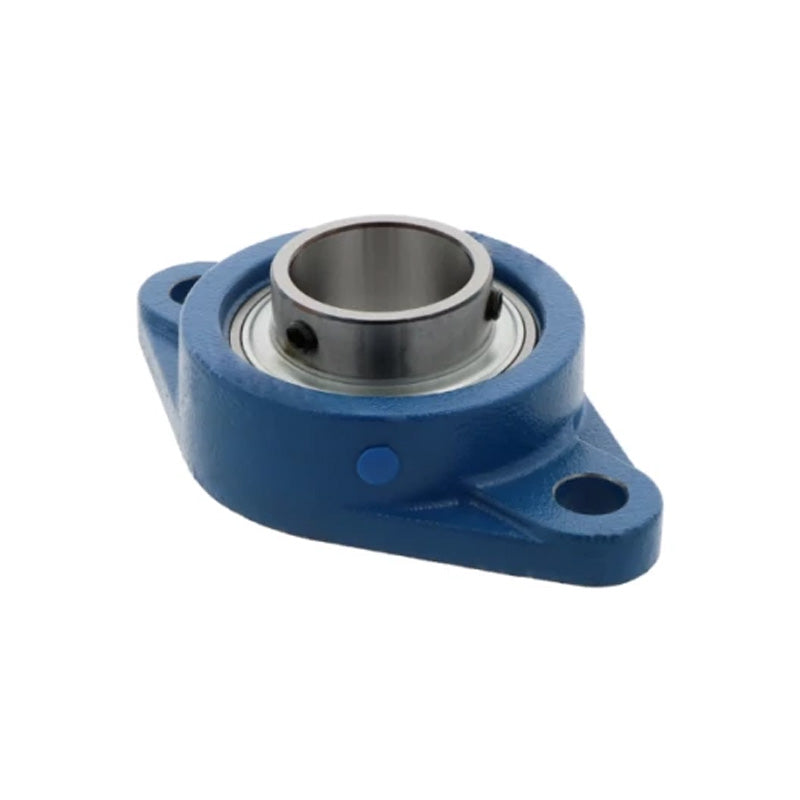

UCFL315 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 75mm Bore
UCFL315 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 75mm Bore
Regular price
€202,32
ex VAT
Regular price
Sale price
€202,32
ex VAT
In stock
Price Break
10+
€180,06
19+
€169,95
29+
€167,93
39+
€165,90
49+
€163,88
74+
€161,86
99+
€151,74
199+
€149,72
249+
€147,69
499+
€145,67
999+
€141,62
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCFL
- Bolt Hole Centres:
- 260mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 320mm |
| e | 260mm |
| i | 39mm |
| g | 30mm |
| l | 66mm |
| s | 35mm |
| b | 195mm |
| z | 89mm |
| B | 82mm |
| n | 32mm |
| Bolt size | M30 |
| Bearing no | UC315 |
| Housing no | FL315 |
| Weight | 10.02 kg |
