SKU: UCFLX.06

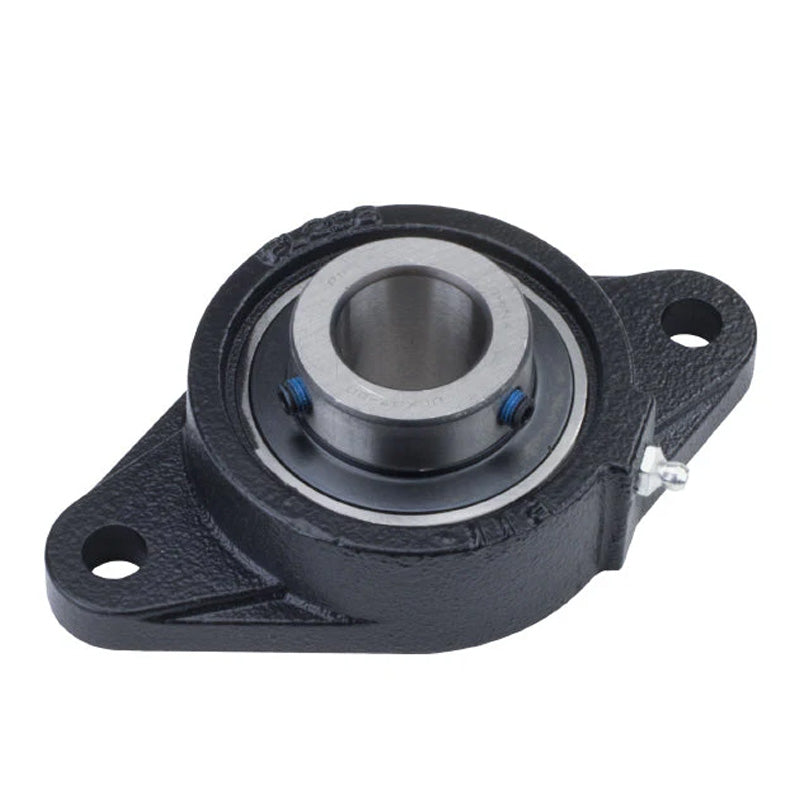

UCFLX06 Metric Two Bolt Oval Cast Iron Housing with 30mm Bore Insert
UCFLX06 Metric Two Bolt Oval Cast Iron Housing with 30mm Bore Insert
Regular price
€24,07
ex VAT
Regular price
Sale price
€24,07
ex VAT
Equivalent to: MSFT30
In stock
Price Break
10+
€21,42
19+
€20,22
29+
€19,98
39+
€19,74
49+
€19,50
74+
€19,26
99+
€18,05
199+
€17,81
249+
€17,57
499+
€17,33
999+
€16,85
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 155mm |
| e | 130mm |
| i | 130mm |
| g | 15mm |
| l | 34mm |
| s | 16mm |
| b | 95mm |
| z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt | M14 |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
