SKU: UCFLX.10

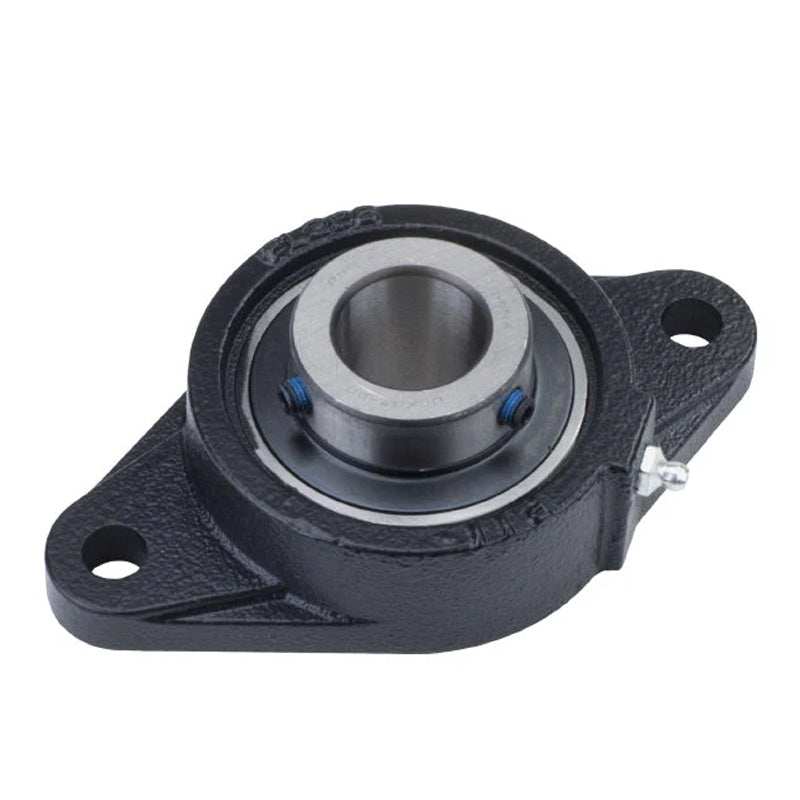

UCFLX10 Metric Two Bolt Oval Cast Iron Housing with 50mm Bore Insert
UCFLX10 Metric Two Bolt Oval Cast Iron Housing with 50mm Bore Insert
Regular price
€52,38
ex VAT
Regular price
Sale price
€52,38
ex VAT
Equivalent to: MSFT50
In stock
Price Break
10+
€46,62
19+
€44,00
29+
€43,48
39+
€42,95
49+
€42,43
74+
€41,90
99+
€39,29
199+
€38,76
249+
€38,24
499+
€37,71
999+
€36,67
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT50
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 216mm |
| e | 184mm |
| i | 184mm |
| g | 18mm |
| l | 44mm |
| s | 19mm |
| b | 133mm |
| z | 59.4mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt | M16 |
| Weight | 3.7 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
