SKU: UCFLX.10-32

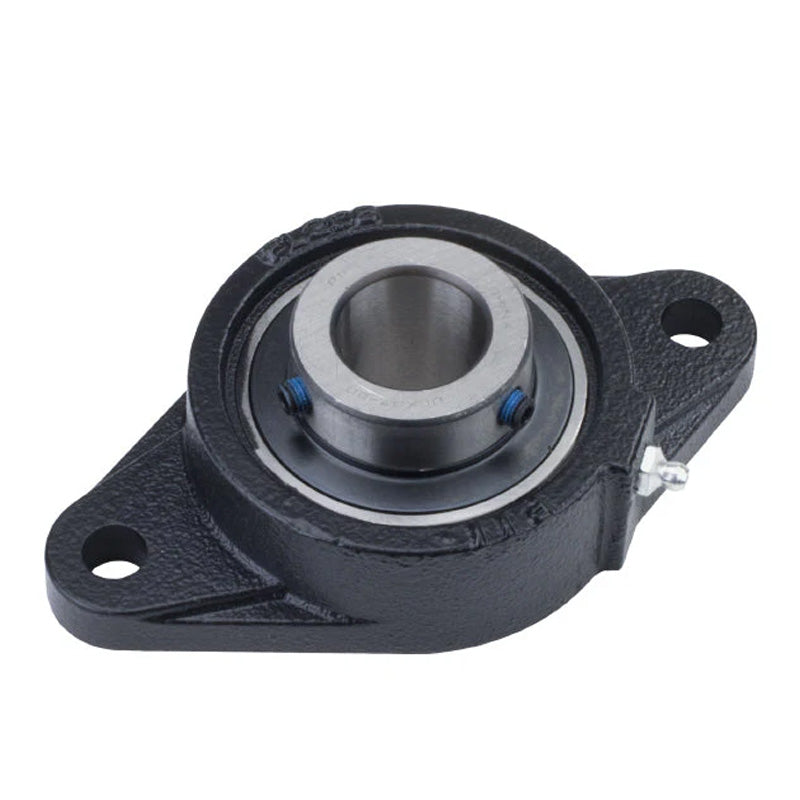

UCFLX10-32 Imperial Two Bolt Oval Cast Iron Housing with 2 inch Bore Insert
UCFLX10-32 Imperial Two Bolt Oval Cast Iron Housing with 2 inch Bore Insert
Regular price
€60,95
ex VAT
Regular price
Sale price
€60,95
ex VAT
In stock
Price Break
3+
€46,22
4+
€43,62
9+
€43,10
19+
€42,58
49+
€42,06
99+
€41,54
499+
€38,95
999+
€38,43
1999+
€37,91
2999+
€37,39
4999+
€36,35
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 184.15mm = 7.25 (7-1/4) inch
Technical
Technical
| d | 2 inch |
|---|---|
| a | 216mm |
| e | 184mm = 7-1/4 inch |
| i | 184mm = 7-1/4 inch |
| g | 18mm = 23/32 inch |
| l | 44mm = 1-23/32 inch |
| s | 19mm = 3/4 inch |
| b | 133mm = 5-1/4 inch |
| z | 59.4mm = 2-11/32 inch |
| Bi | 55.6mm = 2.189 inch |
| n | 22.2mm = 0.874 inch |
| Bolt | 16mm = 5/8 inch |
| Weight | 3.7 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
