SKU: UCFLX05D1-NTN

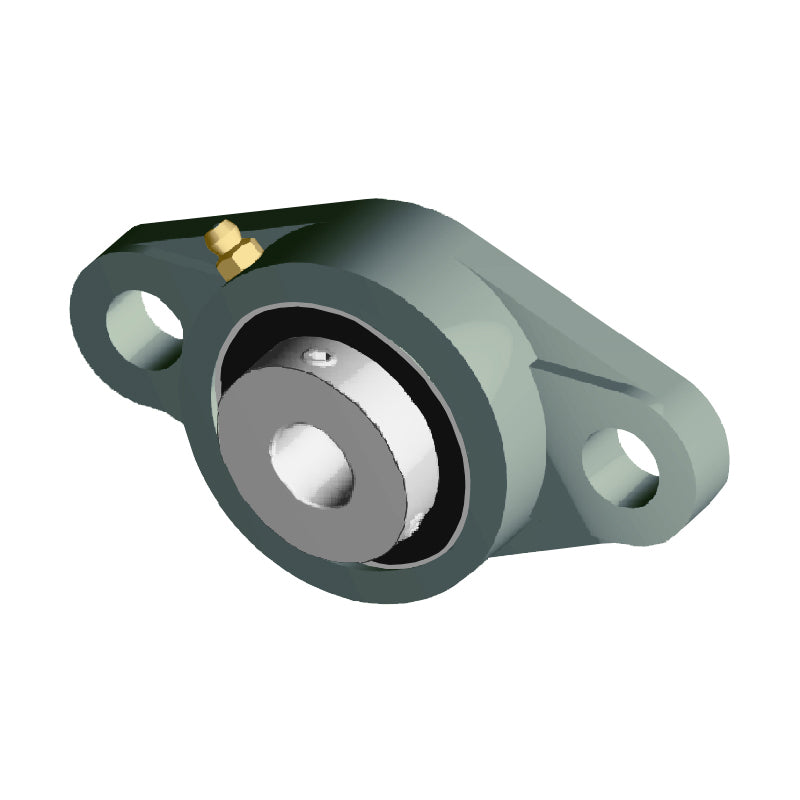

NTN UCFLX05D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
NTN UCFLX05D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
€36,95
ex VAT
Regular price
Sale price
€36,95
ex VAT
In stock
Price Break
3+
€30,70
4+
€29,46
9+
€28,84
19+
€27,91
49+
€27,29
99+
€25,74
499+
€21,71
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 117mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 141mm |
| J | 117mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 30mm |
| N | 12mm |
| L | 83mm |
| A<sub>0</sub> | 40.2mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1 kg |
