SKU: UCFS311D1-NTN

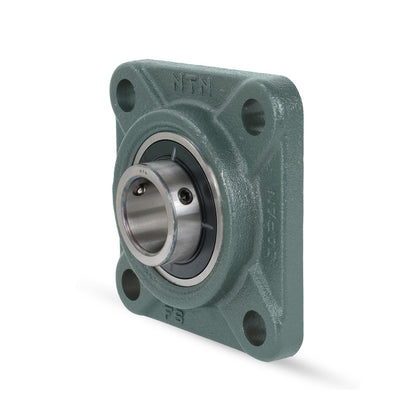

NTN UCFS311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
NTN UCFS311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
€120,04
ex VAT
Regular price
Sale price
€120,04
ex VAT
In stock
Price Break
10+
€106,84
19+
€100,83
29+
€99,63
39+
€98,43
49+
€97,23
74+
€96,03
99+
€90,03
199+
€88,83
249+
€87,63
499+
€86,43
999+
€84,03
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFS
- Bolt Hole Centres:
- 140mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| L | 185mm |
| J | 140mm |
| A<sub>2</sub> | 17mm |
| N | 23mm |
| A<sub>3</sub> | 13mm |
| A<sub>1</sub> | 20mm |
| A | 52mm |
| H<sub>3</sub> | 150mm |
| A<sub>0</sub> | 71mm |
| B | 66mm |
| S | 25mm |
| Fixing bolt | M20 |
| Mass | 5.9 kg |
