SKU: UCFS322D1-NTN

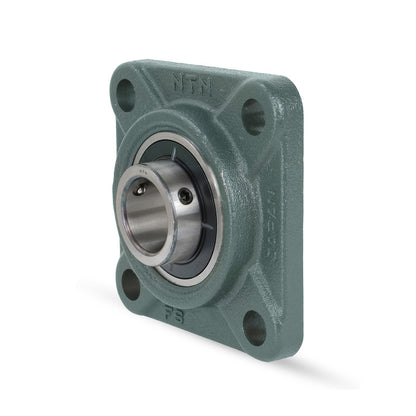

NTN UCFS322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
NTN UCFS322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
Regular price
€618,02
ex VAT
Regular price
Sale price
€618,02
ex VAT
In stock
Price Break
10+
€550,04
19+
€519,14
29+
€512,96
39+
€506,78
49+
€500,60
74+
€494,42
99+
€463,52
199+
€457,33
249+
€451,15
499+
€444,97
999+
€432,61
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCFS
- Bolt Hole Centres:
- 266mm
Technical
Technical
| Shaft diameter | 110mm |
|---|---|
| L | 340mm |
| J | 266mm |
| A<sub>2</sub> | 35mm |
| N | 41mm |
| A<sub>3</sub> | 25mm |
| A<sub>1</sub> | 35mm |
| A | 96mm |
| H<sub>3</sub> | 300mm |
| A<sub>0</sub> | 131mm |
| B | 117mm |
| S | 46mm |
| Fixing bolt | M36 |
| Mass | 38 kg |
