SKU: UCHA205

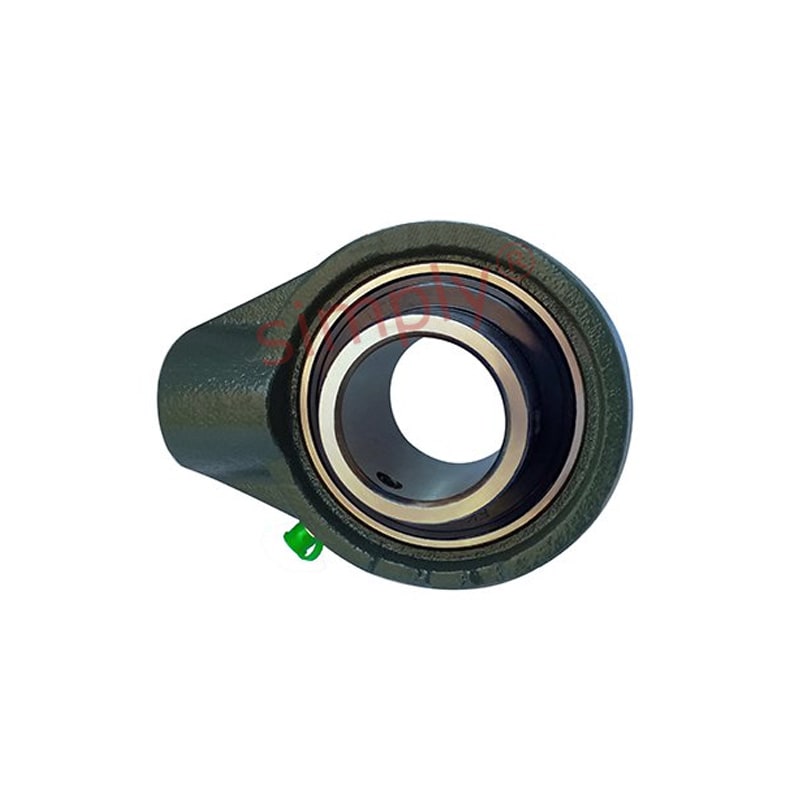

UCHA205 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert
UCHA205 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert
Regular price
€10,26
ex VAT
Regular price
Sale price
€10,26
ex VAT
In stock
Price Break
10+
€9,13
19+
€8,62
29+
€8,52
39+
€8,41
49+
€8,31
74+
€8,21
99+
€7,70
199+
€7,59
249+
€7,49
499+
€7,39
999+
€7,18
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCHA
Technical
Technical
| d | 25mm |
|---|---|
| h | 64mm |
| w | 103mm |
| b | 78mm |
| c | 0mm |
| a | 40mm |
| s | G-3/4 |
| l | 19mm |
| B | 34.1mm |
| n | 14.3mm |
| Bearing no | UC205 |
| Housing no | HA205 |
| Weight | 0.794 kg |
