SKU: UCHA206

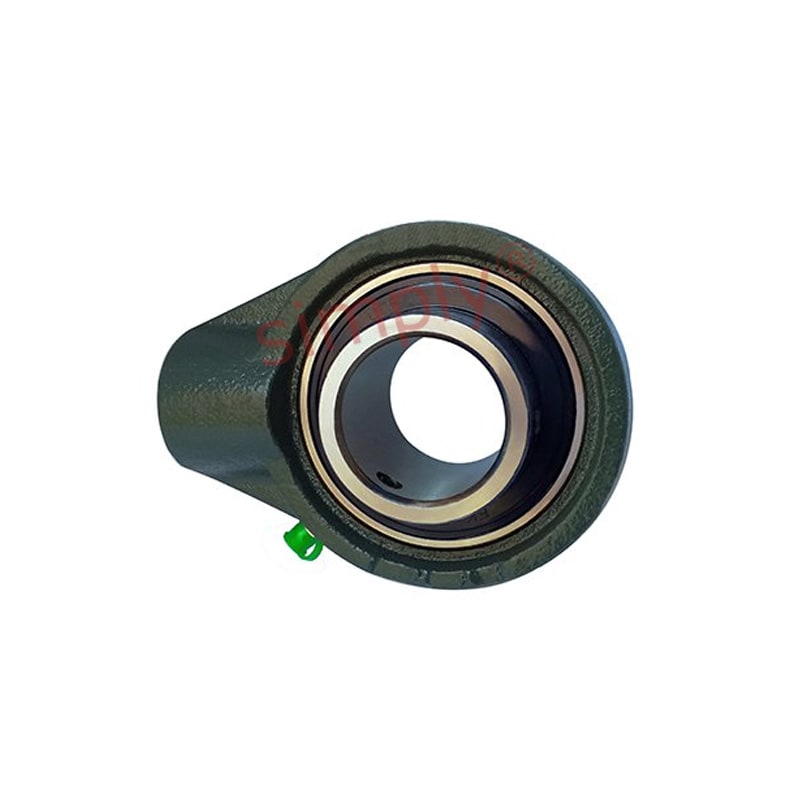

UCHA206 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert
UCHA206 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert
Regular price
€20,21
ex VAT
Regular price
Sale price
€20,21
ex VAT
In stock
Price Break
10+
€17,99
19+
€16,98
29+
€16,77
39+
€16,57
49+
€16,37
74+
€16,17
99+
€15,16
199+
€14,96
249+
€14,75
499+
€14,55
999+
€14,15
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCHA
Technical
Technical
| d | 30mm |
|---|---|
| h | 64mm |
| w | 103mm |
| b | 78mm |
| c | 0mm |
| a | 40mm |
| s | G-3/4 |
| l | 19mm |
| B | 38.1mm |
| n | 15.9mm |
| Bearing no | UC206 |
| Housing no | HA206 |
| Weight | 0.778 kg |
