SKU: UCHA211-35

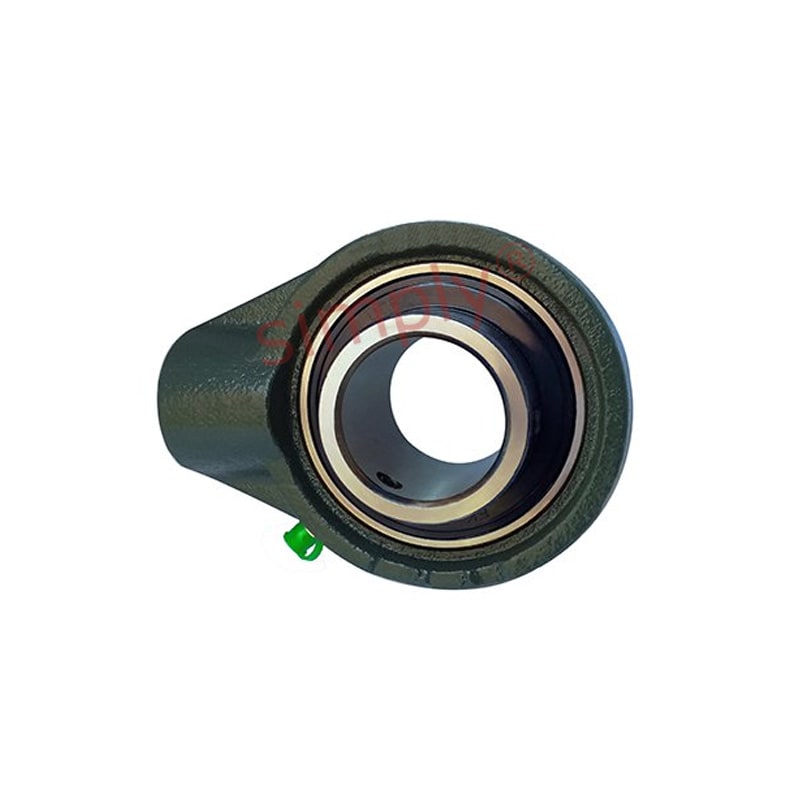

UCHA211-35 Imperial Cast Iron Hanger Bearing Unit with 2-3/16 inch Bore Insert
UCHA211-35 Imperial Cast Iron Hanger Bearing Unit with 2-3/16 inch Bore Insert
Regular price
€59,89
ex VAT
Regular price
Sale price
€59,89
ex VAT
In stock
Price Break
10+
€53,30
19+
€50,31
29+
€49,71
39+
€49,11
49+
€48,51
74+
€47,91
99+
€44,92
199+
€44,32
249+
€43,72
499+
€43,12
999+
€41,92
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCHA
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| h | 3-27/64 inch |
| w | 5-29/32 inch |
| b | 4-61/64 inch |
| c | 9/32 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 63/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UC211-35 |
| Housing no | HA211 |
| Weight | 2.427 kg |
