SKU: UCLP209

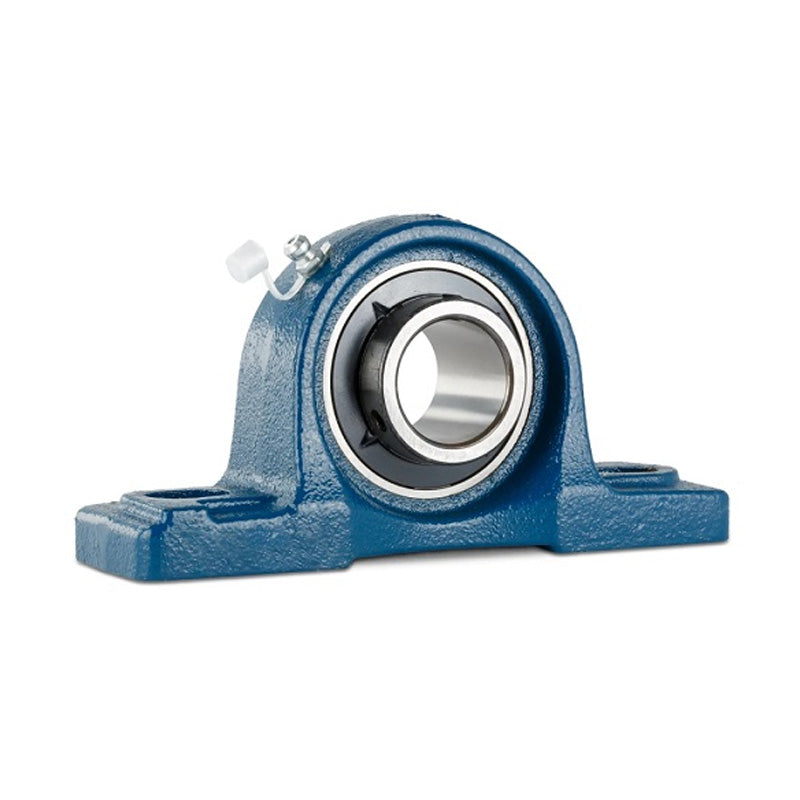

UCLP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Insert
UCLP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Insert
Regular price
€32,72
ex VAT
Regular price
Sale price
€32,72
ex VAT
In stock
Price Break
10+
€29,12
19+
€27,48
29+
€27,16
39+
€26,83
49+
€26,50
74+
€26,18
99+
€24,54
199+
€24,21
249+
€23,89
499+
€23,56
999+
€22,90
Couldn't load pickup availability
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCLP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 52.39mm |
| a | 190mm |
| e | 146mm |
| b | 54mm |
| s1 | 17mm |
| s2 | 20mm |
| g | 20mm |
| w | 104mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC209 |
| Housing no | LP209 |
| Weight | 2.03 kg |
