SKU: UCP.211-32

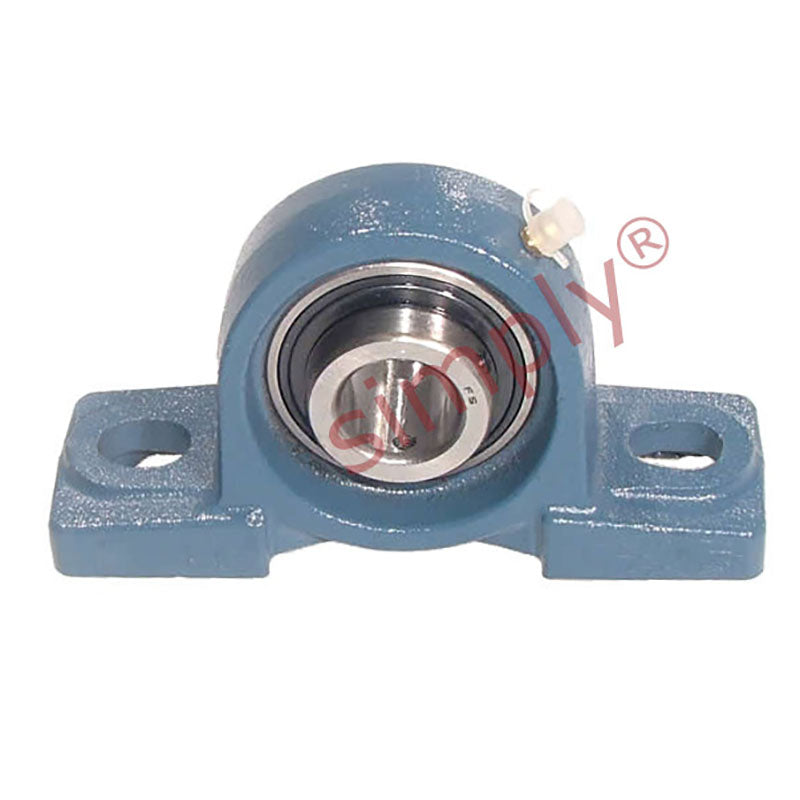

UCP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert
UCP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert
Regular price
€20,95
ex VAT
Regular price
Sale price
€20,95
ex VAT
Equivalent to: NP2
In stock
Price Break
3+
€15,28
4+
€14,42
9+
€14,25
19+
€14,08
49+
€13,91
99+
€13,74
499+
€12,88
999+
€12,71
1999+
€12,53
2999+
€12,36
4999+
€12,02
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 2 inch |
|---|---|
| h | 63.5mm |
| a | 219mm |
| e | 171mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 126mm |
| B1 | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
