SKU: UCP.319

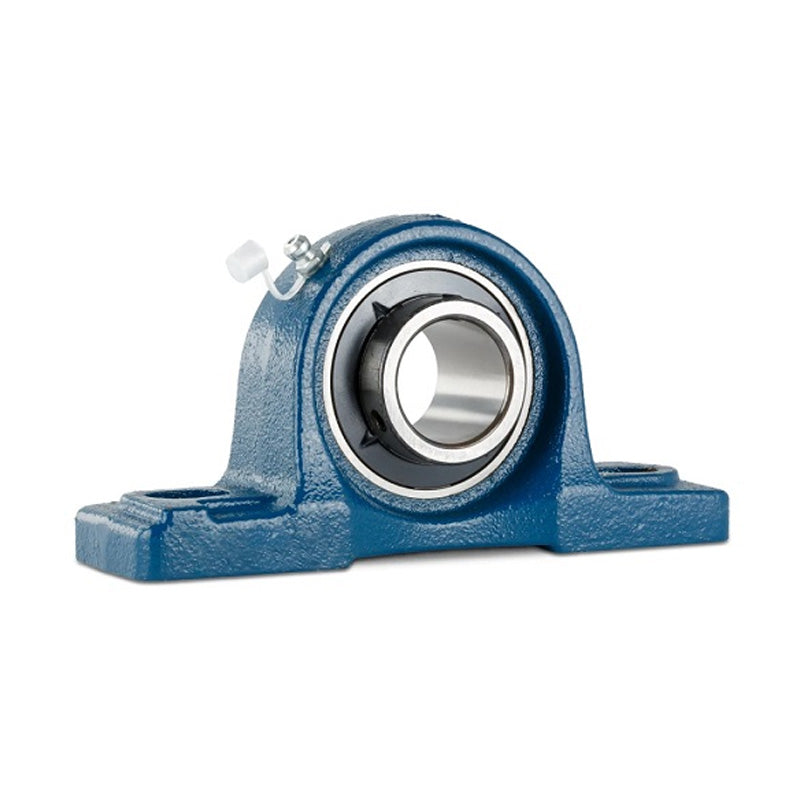

UCP319 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 95mm Bore Insert
UCP319 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 95mm Bore Insert
Regular price
€526,95
ex VAT
Regular price
Sale price
€526,95
ex VAT
In stock
Price Break
3+
€400,57
4+
€378,06
9+
€373,56
19+
€369,06
49+
€364,56
99+
€360,06
499+
€337,56
999+
€333,06
1999+
€328,55
2999+
€324,05
4999+
€315,05
Share this product
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Style:
- UCP
- Bolt Hole Centres:
- 360mm

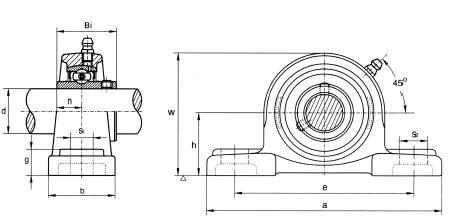

Technical
Technical
| d | 95mm |
|---|---|
| h | 125mm |
| a | 470mm |
| e | 360mm |
| b | 120mm |
| s2 | 50mm |
| s1 | 36mm |
| g | 45mm |
| w | 250mm |
| b1 | 103mm |
| n | 41mm |
| Bolt | 30mm |
| Weight | 28.2 kg |
| Dynamic load | 12300 kgf |
| Static load | 11600 kgf |
