SKU: UCPA.202-10

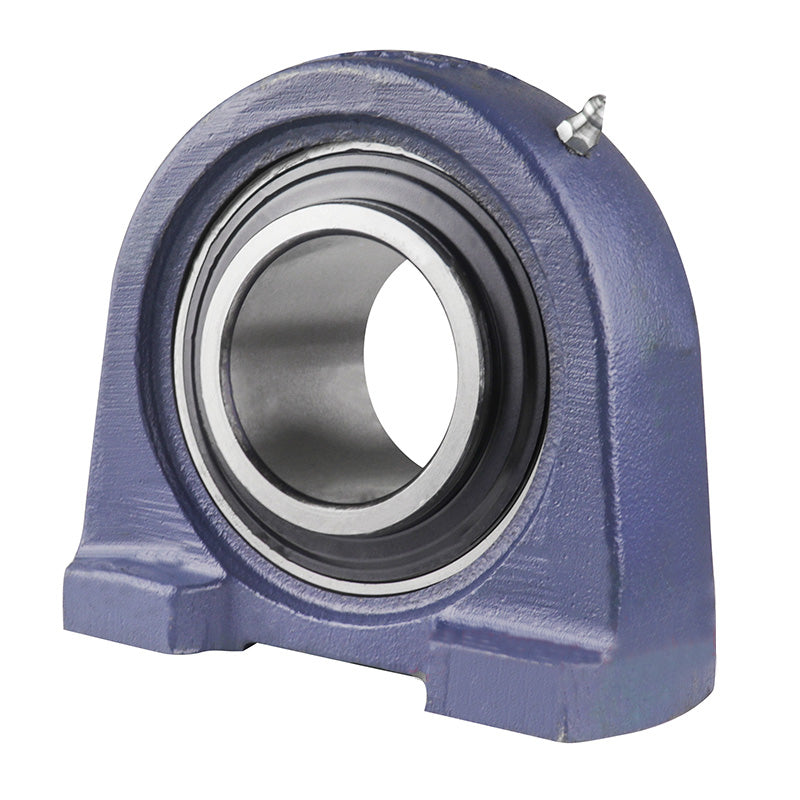

UCPA202-10 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 5/8 inch Bore Insert
UCPA202-10 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 5/8 inch Bore Insert
Regular price
€15,74
ex VAT
Regular price
Sale price
€15,74
ex VAT
In stock
Price Break
10+
€14,01
19+
€13,22
29+
€13,06
39+
€12,91
49+
€12,75
74+
€12,59
99+
€11,81
199+
€11,65
249+
€11,49
499+
€11,33
999+
€11,02
Couldn't load pickup availability
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 51.99mm = 2.047 (2-3/64) inch
Technical
Technical
| d | 5/8 inch |
|---|---|
| h | 1-3/16" |
| a | 3" |
| e | 2-3/64" |
| b | 1-9/16" |
| s | M10 |
| g | 7/16" |
| w | 2-7/16" |
| D | 1/2" |
| Bi | 1.2205" |
| n | 0.5" |
| Bolt Size | M10 |
| Weight | 0.64 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
