SKU: UCPA.205-14

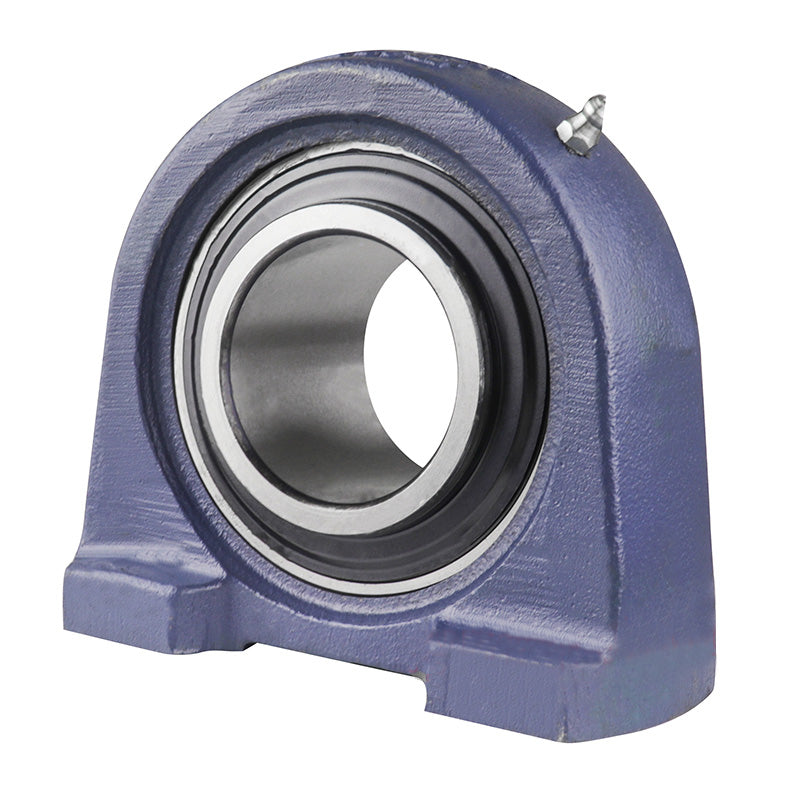

UCPA205-14 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 7/8 inch Bore Insert
UCPA205-14 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 7/8 inch Bore Insert
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
3+
€7,69
4+
€7,26
9+
€7,17
19+
€7,08
49+
€7,00
99+
€6,91
499+
€6,48
999+
€6,39
1999+
€6,31
2999+
€6,22
4999+
€6,05
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 55.96mm = 2.203 (2-13/64) inch
Technical
Technical
| d | 7/8 inch |
|---|---|
| h | 1-7/16" |
| a | 3-5/16" |
| e | 2-13/64" |
| b | 1-25/32" |
| s | M10 |
| g | 15/32" |
| w | 2-27/32" |
| D | 1/2" |
| Bi | 1.3386" |
| n | 0.5630" |
| Bolt Size | M10 |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
