SKU: UCPA.206

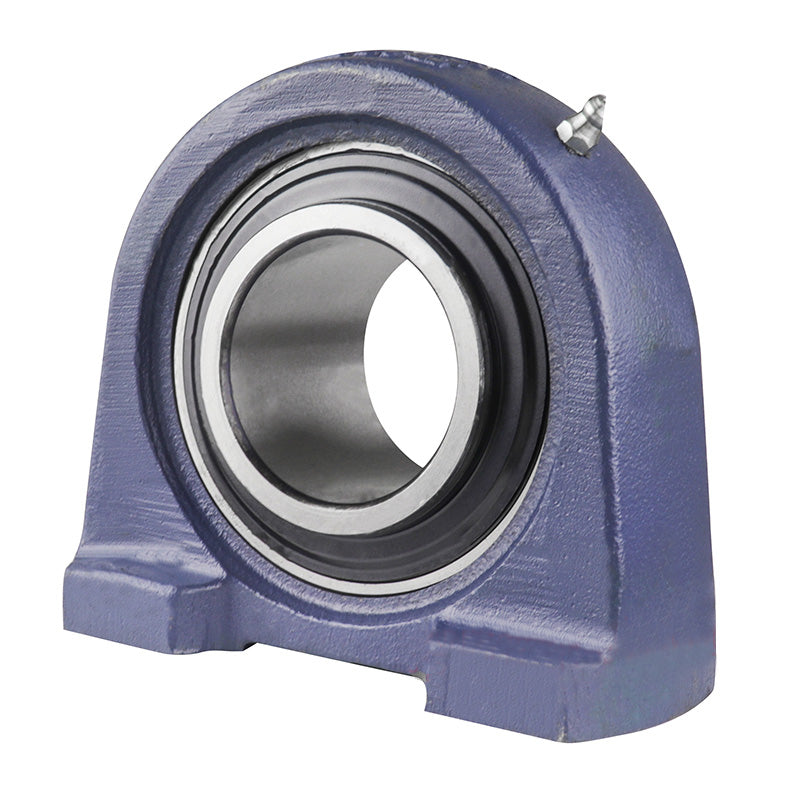

UCPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert
UCPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert
Regular price
€17,95
ex VAT
Regular price
Sale price
€17,95
ex VAT
Equivalent to: SNP30
In stock
Price Break
3+
€13,35
4+
€12,60
9+
€12,45
19+
€12,30
49+
€12,15
99+
€12,00
499+
€11,25
999+
€11,10
1999+
€10,95
2999+
€10,80
4999+
€10,50
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP30
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCPA
- Bolt Hole Centres:
- 66mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 42.9mm |
| a | 94mm |
| e | 66mm |
| b | 50mm |
| s | M14 |
| g | 12mm |
| w | 84mm |
| D | 18mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
