SKU: UCPA.208-25

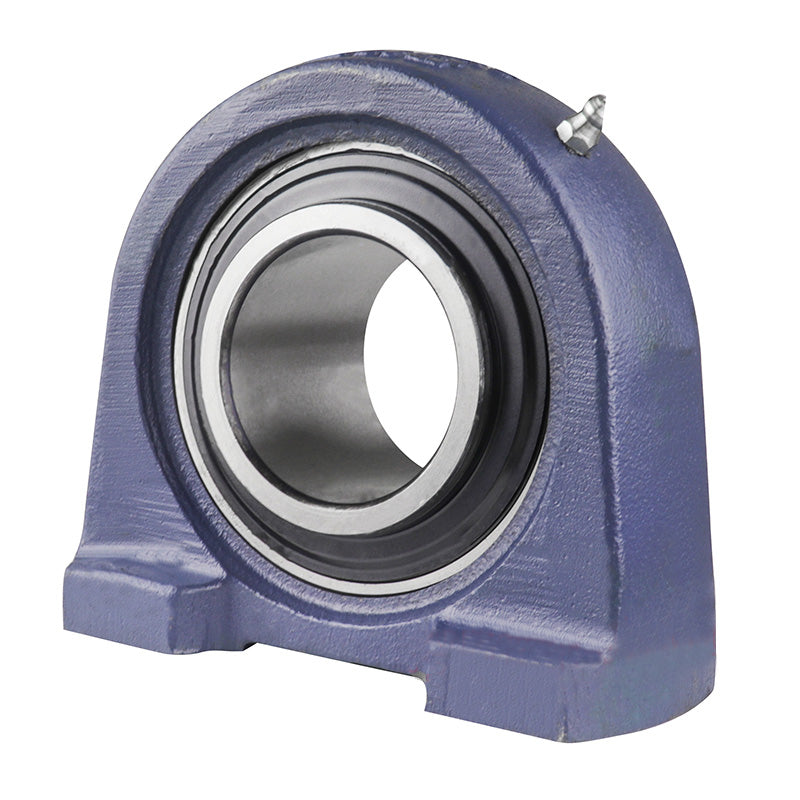

UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert
UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
In stock
Price Break
3+
€23,49
4+
€22,17
9+
€21,91
19+
€21,65
49+
€21,38
99+
€21,12
499+
€19,80
999+
€19,53
1999+
€19,27
2999+
€19,01
4999+
€18,48
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 84.13mm = 3.312 (3-5/16) inch
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| h | 1-15/16" |
| a | 4-9/16" |
| e | 3-5/16" |
| b | 2-9/32" |
| s | M14 |
| g | 1/2" |
| w | 3-15/16" |
| D | 25/32" |
| Bi | 1.9370" |
| n | 0.7480" |
| Bolt Size | M14 |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
