SKU: UCPA.209

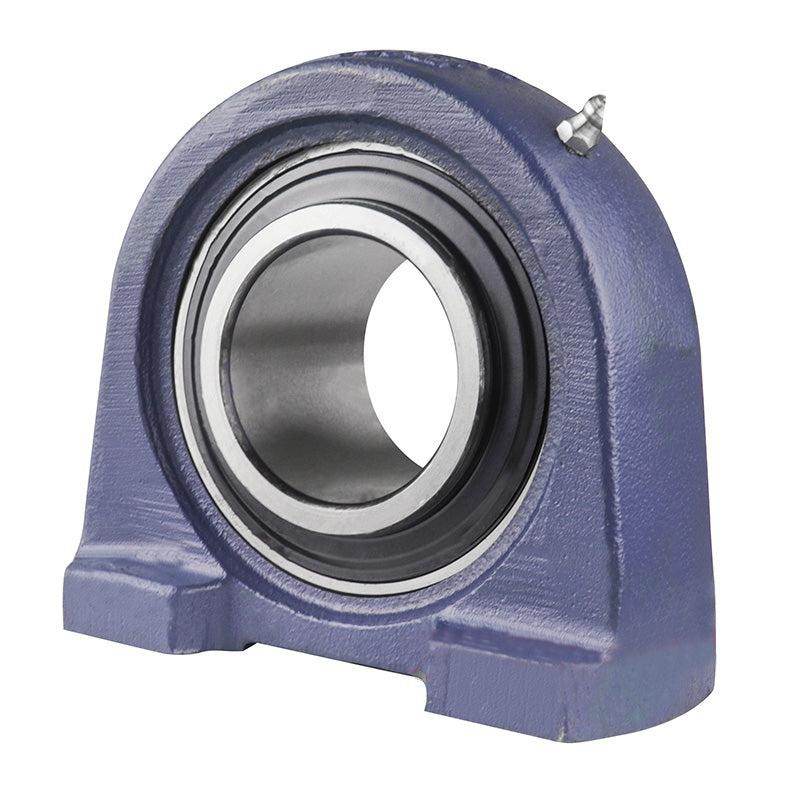

UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert
UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert
Regular price
€32,97
ex VAT
Regular price
Sale price
€32,97
ex VAT
Equivalent to: SNP45
In stock
Price Break
10+
€29,34
19+
€27,69
29+
€27,37
39+
€27,04
49+
€26,71
74+
€26,38
99+
€24,73
199+
€24,40
249+
€24,07
499+
€23,74
999+
€23,08
Couldn't load pickup availability
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCPA
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 54.2mm |
| a | 120mm |
| e | 90mm |
| b | 60mm |
| s | M14 |
| g | 13mm |
| w | 108mm |
| D | 25mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
