SKU: UCPA.212

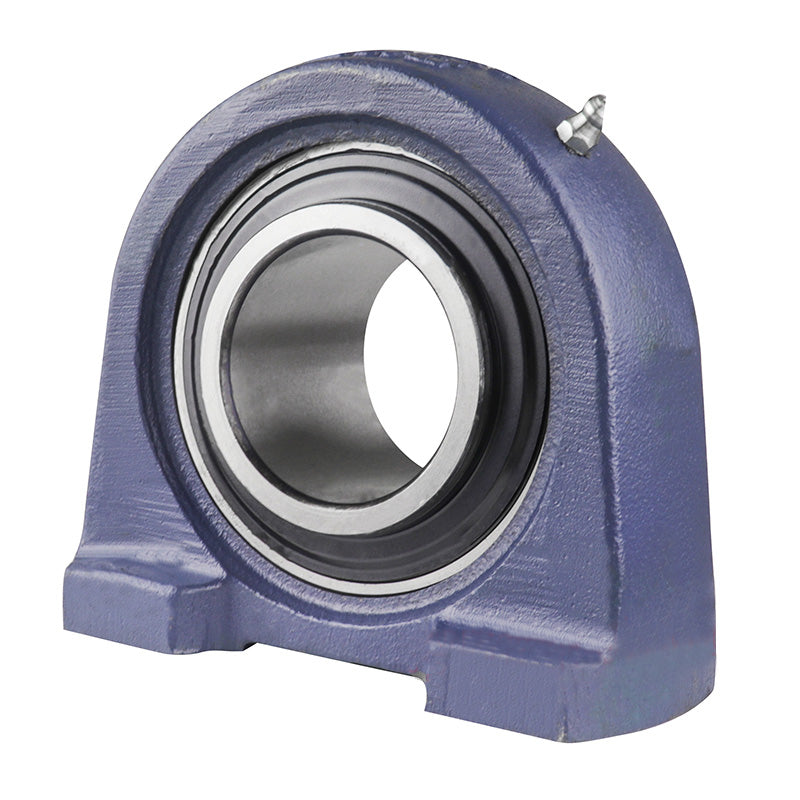

UCPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert
UCPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert
Regular price
€60,95
ex VAT
Regular price
Sale price
€60,95
ex VAT
In stock
Price Break
3+
€46,26
4+
€43,66
9+
€43,14
19+
€42,62
49+
€42,10
99+
€41,58
499+
€38,98
999+
€38,46
1999+
€37,94
2999+
€37,43
4999+
€36,39
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCPA
- Bolt Hole Centres:
- 114mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 69.9mm |
| a | 150mm |
| e | 114mm |
| b | 68mm |
| s | M16 |
| g | 25mm |
| w | 15mm |
| D | 138mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 4.19kg |
