SKU: UCPE207-23N-SNR

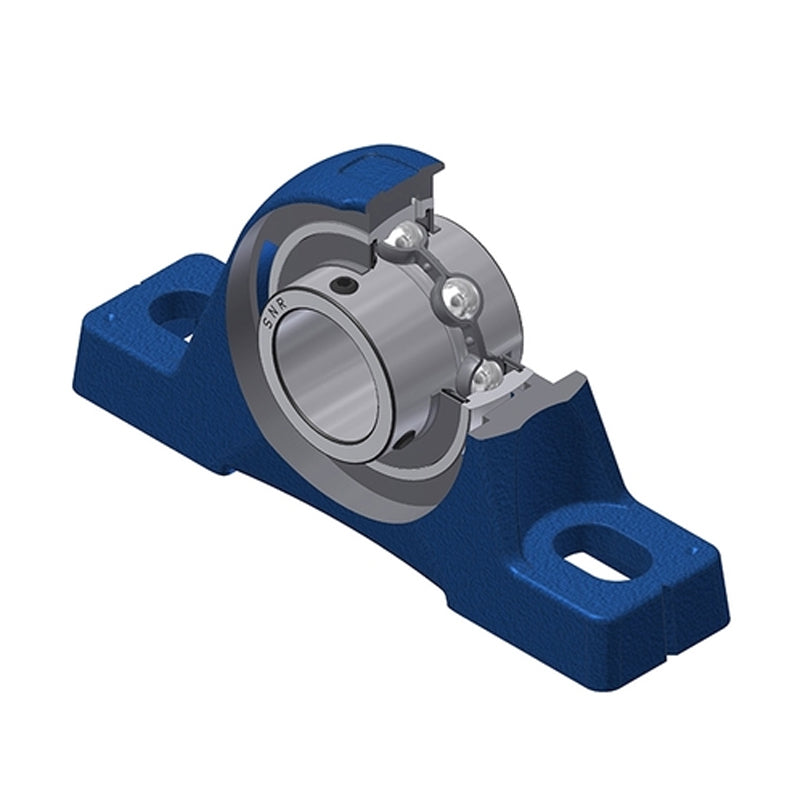

SNR UCPE207-23N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Bore Insert - Allow 2-3 Days

SNR UCPE207-23N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Bore Insert - Allow 2-3 Days
Regular price €46,95 ex VAT
Regular price Sale price €46,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,48
4+ €37,89
9+ €37,09
19+ €35,89
49+ €35,09
99+ €33,10
499+ €27,92
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-7/16mm
A 45mm
A1 27mm
B 42.9mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 17.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 1.45 kg
