SKU: UCPE213CC-SNR

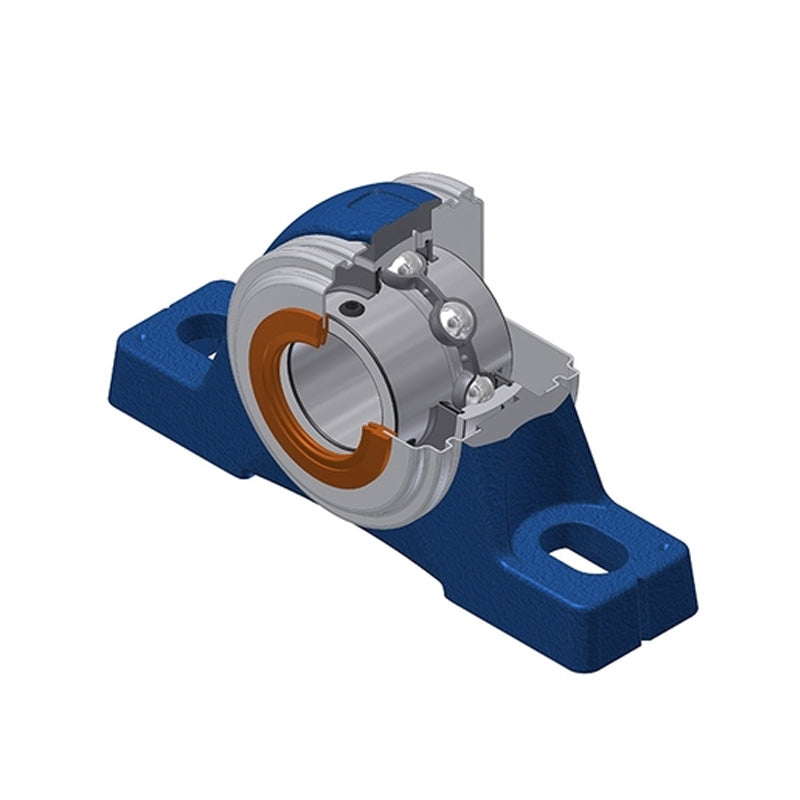

SNR UCPE213CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPE213CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price €181,95 ex VAT
Regular price Sale price €181,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,58
4+ €147,37
9+ €144,27
19+ €139,62
49+ €136,51
99+ €128,76
499+ €108,59
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
A 65mm
A1 44mm
B 65.1mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 25.4mm
Dz 132mm
Z 92.3mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.54 kg
