SKU: UCPG208T20-SNR
SNR UCPG208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCPG208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€106,05
ex VAT
Regular price
Sale price
€106,05
ex VAT
In stock
Price Break
5+
€104,99
10+
€100,75
20+
€98,63
50+
€95,45
100+
€93,32
500+
€88,02
1000+
€74,24
Couldn't load pickup availability
Description
Description

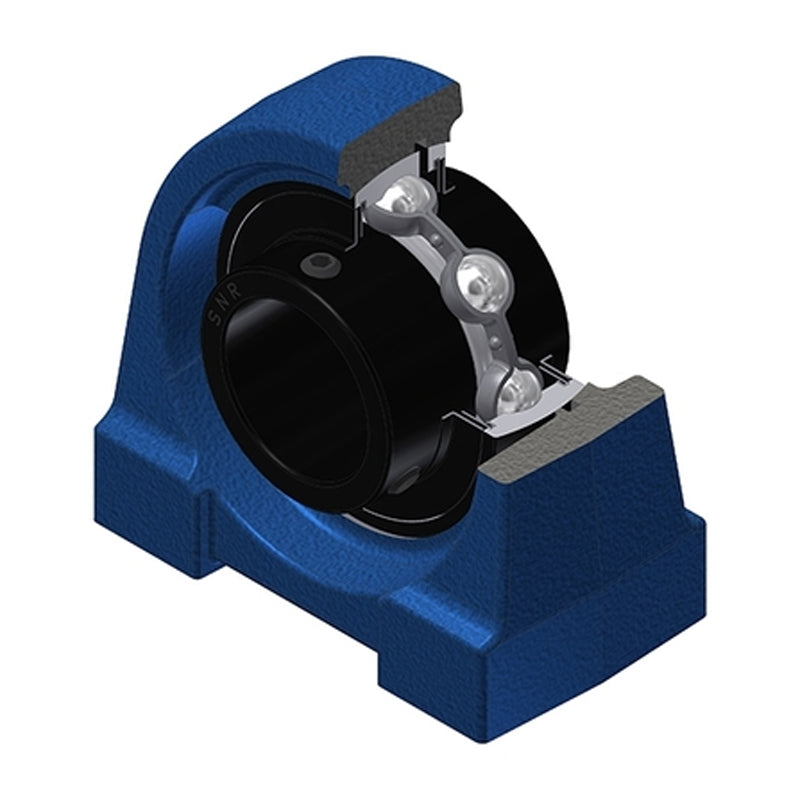

UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPG
- Bolt Hole Centres:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 30mm |
| B | 49.2mm |
| E | 22mm |
| H | 49.2mm |
| H1 | 20mm |
| H2 | 98mm |
| J | 78mm |
| L | 110mm |
| L1 | 35mm |
| N | M12 |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.84 kg |
