SKU: UCPG210L3-SNR

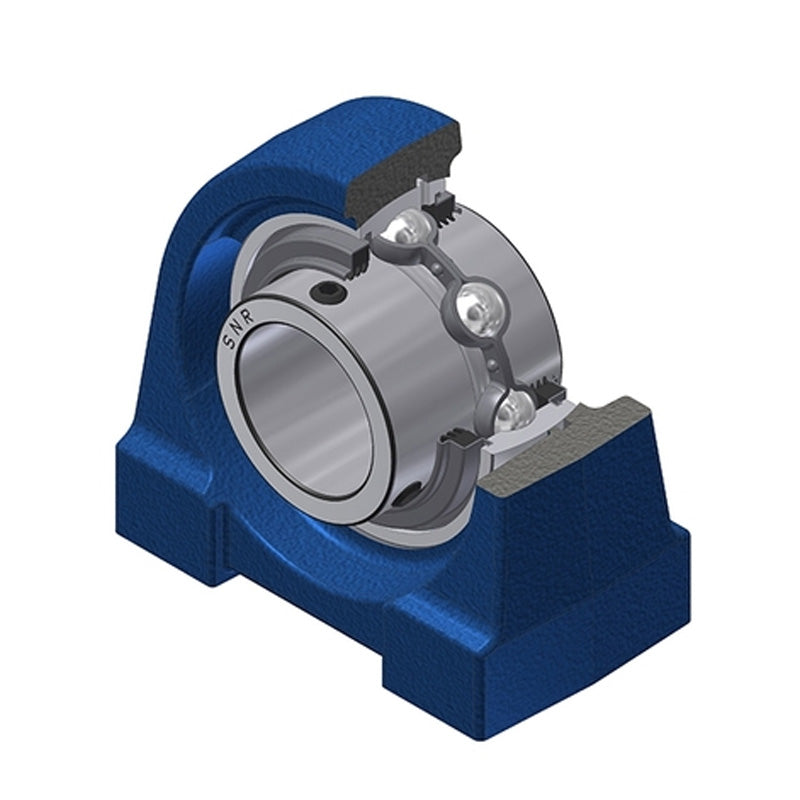

SNR UCPG210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCPG210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price €90,95 ex VAT
Regular price Sale price €90,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,77
4+ €73,67
9+ €72,12
19+ €69,80
49+ €68,24
99+ €64,37
499+ €54,29
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.8 kg
