SKU: UCPLE210CC-SNR

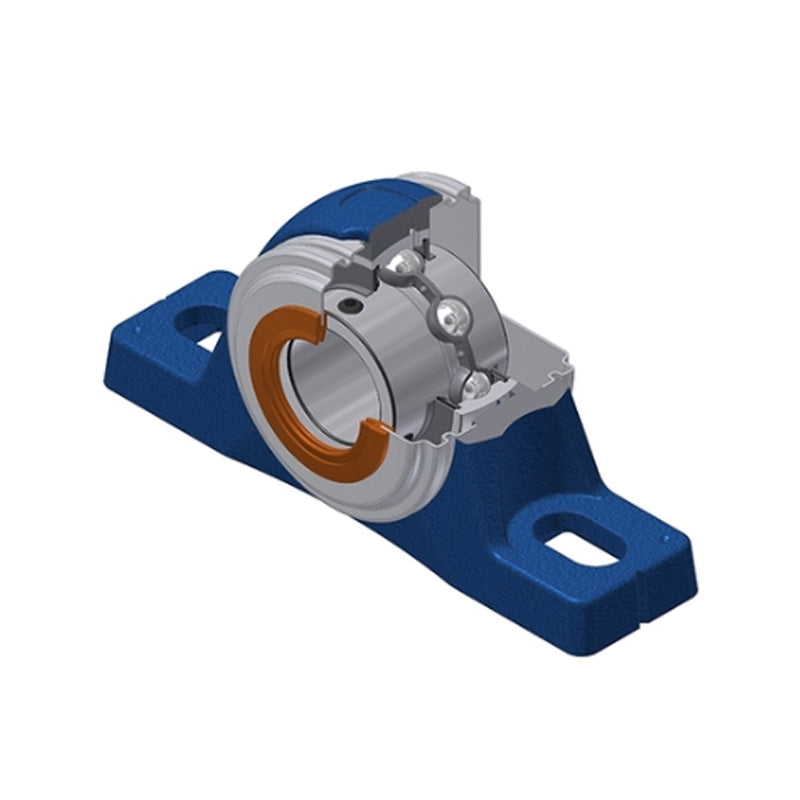

SNR UCPLE210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPLE210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price €116,95 ex VAT
Regular price Sale price €116,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,77
4+ €94,78
9+ €92,79
19+ €89,79
49+ €87,80
99+ €82,81
499+ €69,84
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 55mm
A1 36mm
B 51.6mm
H 55.6mm
H1 19.3mm
H2 114mm
J 164mm
L 214mm
N 14mm
N1 27mm
S 19mm
Dz 100mm
Z 77.1mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.73 kg
