SKU: UCPX.06-18
UCPX06-18 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert
UCPX06-18 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
Equivalent to: MP1-1/8
In stock
Price Break
3+
€21,82
4+
€20,60
9+
€20,35
19+
€20,11
49+
€19,86
99+
€19,62
499+
€18,39
999+
€18,15
1999+
€17,90
2999+
€17,66
4999+
€17,16
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MP1-1/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 127mm

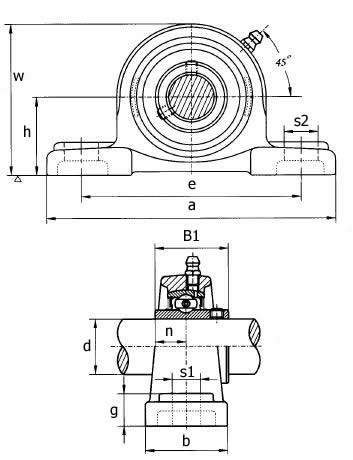

Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 47.6mm |
| a | 175mm |
| e | 127mm |
| b | 57mm |
| s2 | 25mm |
| s1 | 17mm |
| g | 20mm |
| w | 94mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt Size | M12 |
| Weight | 2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
