SKU: UCS.202-16

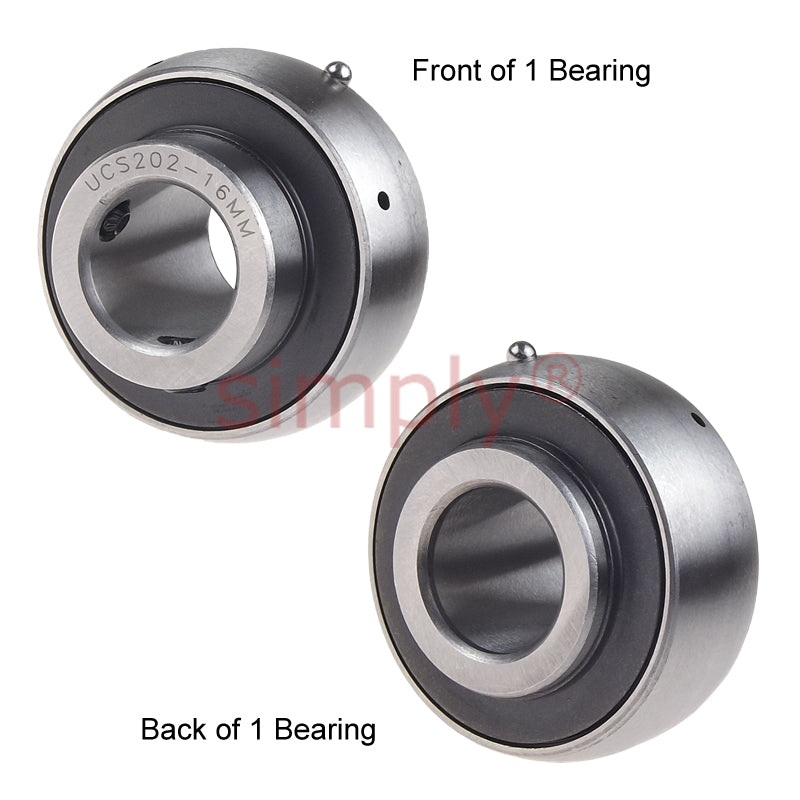

UCS202-16 Metric Spherical Bearing Insert with 16mm Bore 40mm Outside Dia
UCS202-16 Metric Spherical Bearing Insert with 16mm Bore 40mm Outside Dia
Regular price
€8,34
ex VAT
Regular price
Sale price
€8,34
ex VAT
Equivalent to: RB202-16
In stock
Price Break
10+
€7,42
19+
€7,01
29+
€6,92
39+
€6,84
49+
€6,76
74+
€6,67
99+
€6,26
199+
€6,17
249+
€6,09
499+
€6,00
999+
€5,84
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: RB202-16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 40mm
- Type:
- Spherical Outer
Technical
Technical
| d | 16mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| N | 11.5mm |
| M | 15.9mm |
| G | 4mm |
| ds | M5x0.8 |
| Dynamic Load | 9600 N |
| Static Load | 4600 N |
| Weight | 0.11 kg |
