SKU: UCSP205CO-SNR

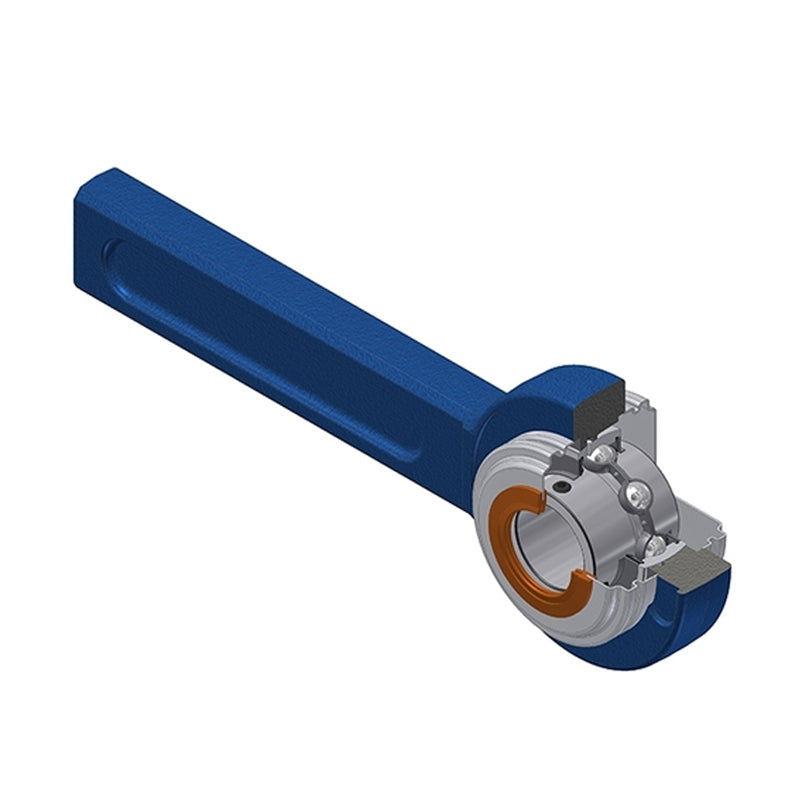

SNR UCSP205CO Metric Cast Iron Tensioner Unit with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCSP205CO Metric Cast Iron Tensioner Unit with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €116,95 ex VAT
Regular price Sale price €116,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,78
4+ €94,79
9+ €92,80
19+ €89,80
49+ €87,81
99+ €82,82
499+ €69,85
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 25mm
A 21mm
B 34mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 14.3mm
Dz 60mm
Z 47.8mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.578 kg
