SKU: UCSP209CO-SNR

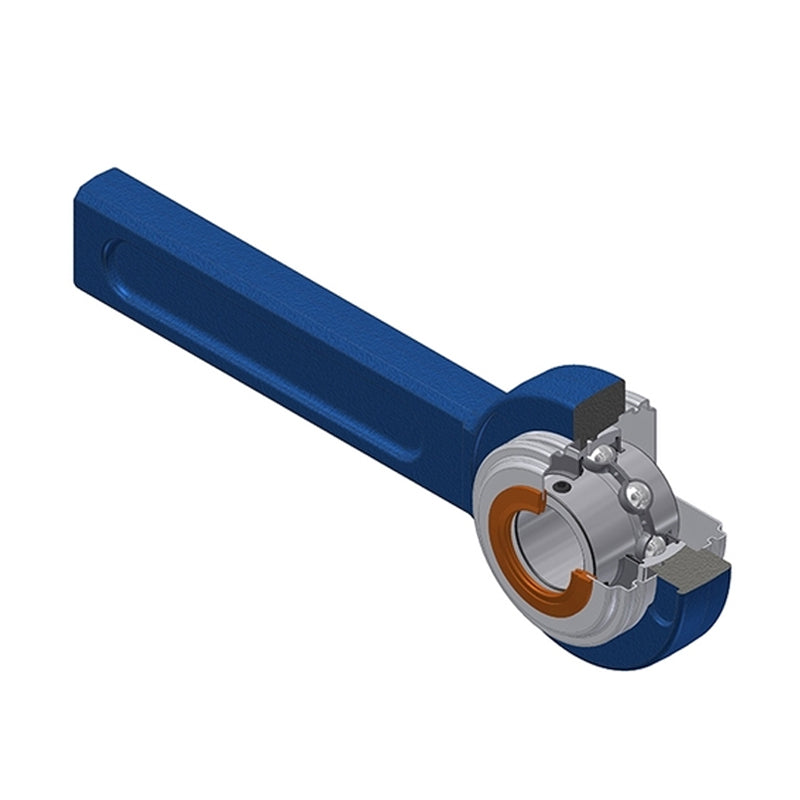

SNR UCSP209CO Metric Cast Iron Tensioner Unit with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCSP209CO Metric Cast Iron Tensioner Unit with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €181,95 ex VAT
Regular price Sale price €181,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,61
4+ €147,40
9+ €144,30
19+ €139,64
49+ €136,54
99+ €128,78
499+ €108,61
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 45mm
A 31mm
B 49.2mm
H 120mm
H2 61mm
L 320mm
L1 260mm
S 19mm
Dz 95mm
Z 69.3mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR21
Stretcher frame 3 SPR22
Stretcher frame 4 SPR24
Mass 3.938 kg
