SKU: UCSP210CO-SNR

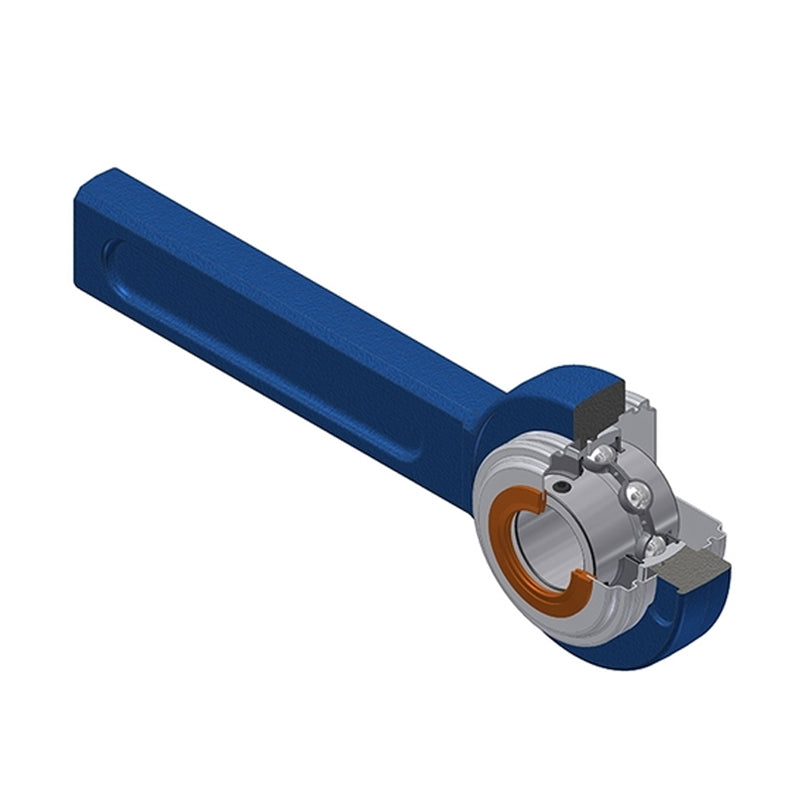

SNR UCSP210CO Metric Cast Iron Tensioner Unit with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCSP210CO Metric Cast Iron Tensioner Unit with 50mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €259,95 ex VAT
Regular price Sale price €259,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €219,45
4+ €210,59
9+ €206,15
19+ €199,50
49+ €195,07
99+ €183,99
499+ €155,17
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 31mm
B 51.6mm
H 120mm
H2 61mm
L 320mm
L1 260mm
S 19mm
Dz 100mm
Z 75.1mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR21
Stretcher frame 3 SPR22
Stretcher frame 4 SPR24
Mass 4.014 kg
