SKU: UCT.202-10

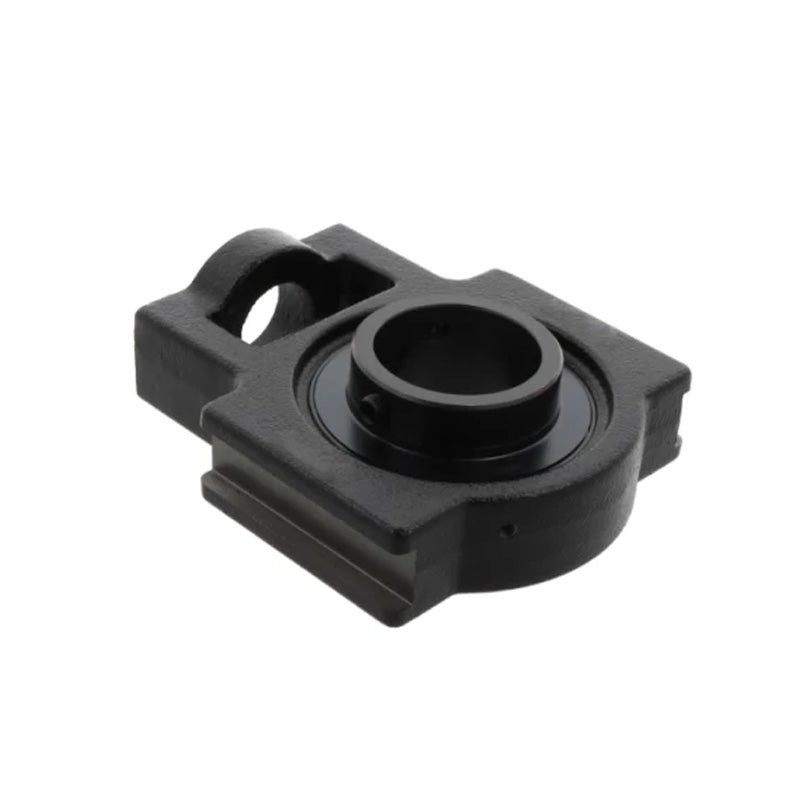

UCT202-10 Metric Series Cast Iron Take Up Unit Housing with 5/8 inch Bore Bearing Unit
UCT202-10 Metric Series Cast Iron Take Up Unit Housing with 5/8 inch Bore Bearing Unit
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
3+
€7,08
4+
€6,68
9+
€6,60
19+
€6,52
49+
€6,44
99+
€6,36
499+
€5,96
999+
€5,88
1999+
€5,80
2999+
€5,72
4999+
€5,57
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- UCT
Technical
Technical
| d | 5/8 inch |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19mm |
| b | 51mm |
| k | 12mm |
| e | 76mm |
| a | 89mm |
| W | 94mm |
| j | 32mm |
| L | 21mm |
| h | 61mm |
| Bi | 31mm |
| n | 12.7mm |
| Weight | 0.79 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
