SKU: UCT.205-14

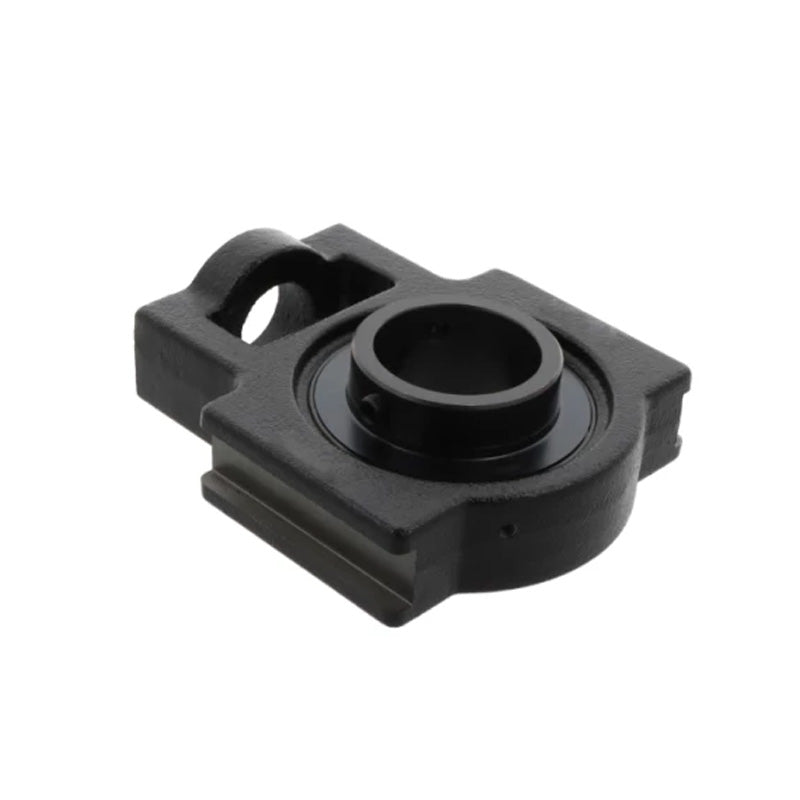

UCT205-14 Metric Series Cast Iron Take Up Unit Housing with 7/8 inch Bore Bearing Unit
UCT205-14 Metric Series Cast Iron Take Up Unit Housing with 7/8 inch Bore Bearing Unit
Regular price
€10,12
ex VAT
Regular price
Sale price
€10,12
ex VAT
Equivalent to: ST7/8
In stock
Price Break
10+
€9,01
19+
€8,50
29+
€8,40
39+
€8,30
49+
€8,20
74+
€8,10
99+
€7,59
199+
€7,49
249+
€7,39
499+
€7,29
999+
€7,08
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: ST7/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCT
Technical
Technical
| d | 7/8 inch |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19.mm |
| b | 51mm |
| k | 12mm |
| e | 76mm |
| a | 89mm |
| W | 97mm |
| j | 32mm |
| L | 24mm |
| h | 62mm |
| Bi | 34mm |
| n | 14.3mm |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
