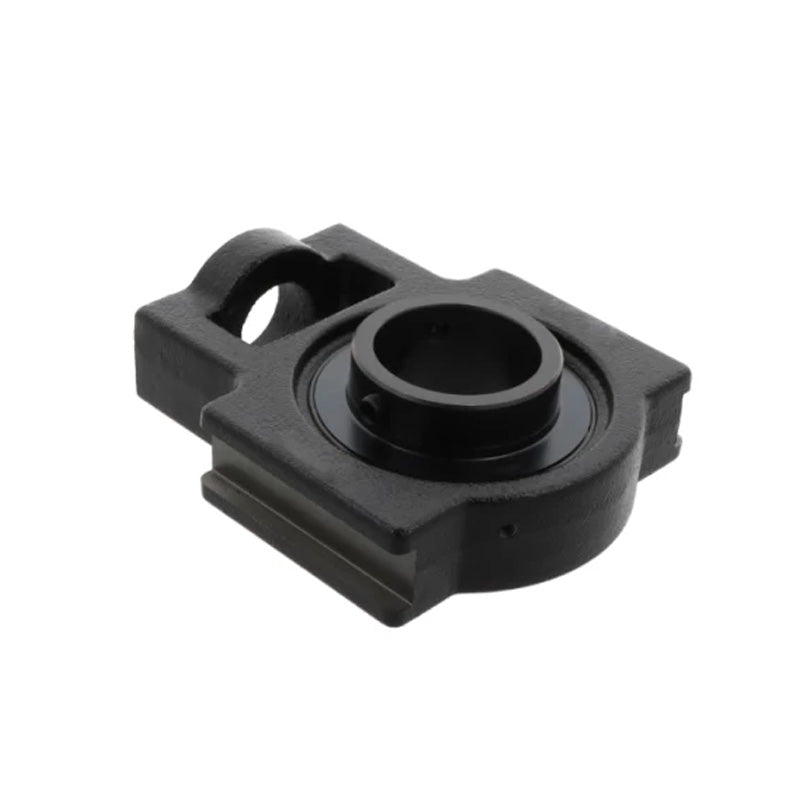

UCT208-25 Metric Series Cast Iron Take Up Unit Housing with 1-9/16 inch Bore Bearing Unit
UCT208-25 Metric Series Cast Iron Take Up Unit Housing with 1-9/16 inch Bore Bearing Unit
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
In stock
Price Break
3+
€22,86
4+
€21,57
9+
€21,32
19+
€21,06
49+
€20,80
99+
€20,55
499+
€19,26
999+
€19,01
1999+
€18,75
2999+
€18,49
4999+
€17,98
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCT
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 114mm |
| W | 144mm |
| j | 49mm |
| L | 33mm |
| h | 88mm |
| Bi | 49.2mm |
| n | 19mm |
| Weight | 2.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
