SKU: UCT.215

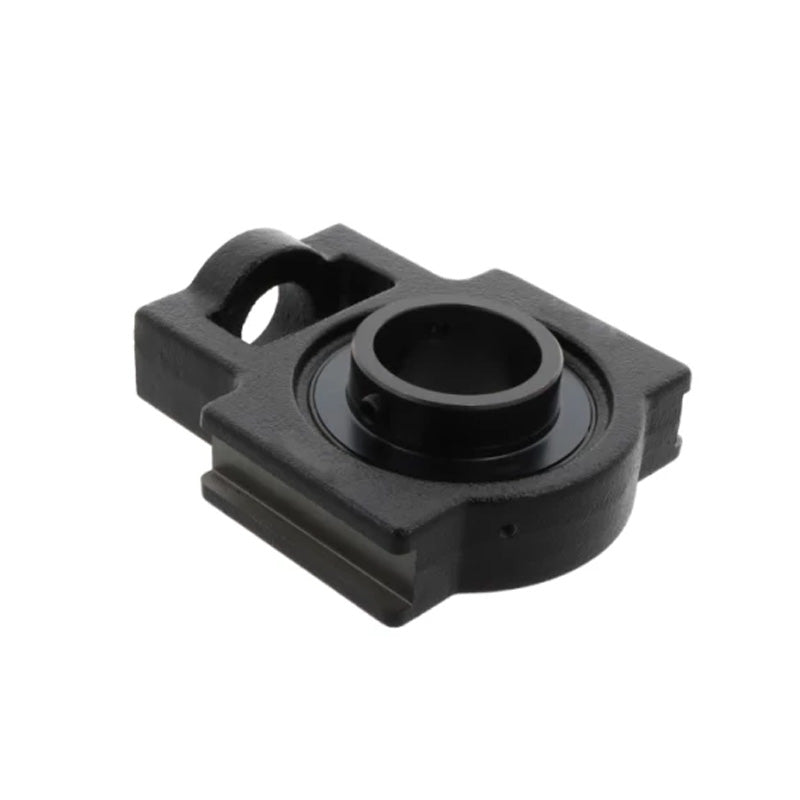

UCT215 Metric Series Cast Iron Take Up Unit Housing with 75mm Bore Bearing Unit
UCT215 Metric Series Cast Iron Take Up Unit Housing with 75mm Bore Bearing Unit
Regular price
€156,95
ex VAT
Regular price
Sale price
€156,95
ex VAT
In stock
Price Break
3+
€119,13
4+
€112,44
9+
€111,10
19+
€109,76
49+
€108,42
99+
€107,08
499+
€100,39
999+
€99,05
1999+
€97,71
2999+
€96,38
4999+
€93,70
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCT
Technical
Technical
| d | 75mm |
|---|---|
| o | 32mm |
| g | 21mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| W | 232mm |
| j | 70mm |
| L | 48mm |
| h | 140mm |
| Bi | 77.8mm |
| n | 33.3mm |
| Weight | 7.4 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
