SKU: UCT211T20-SNR

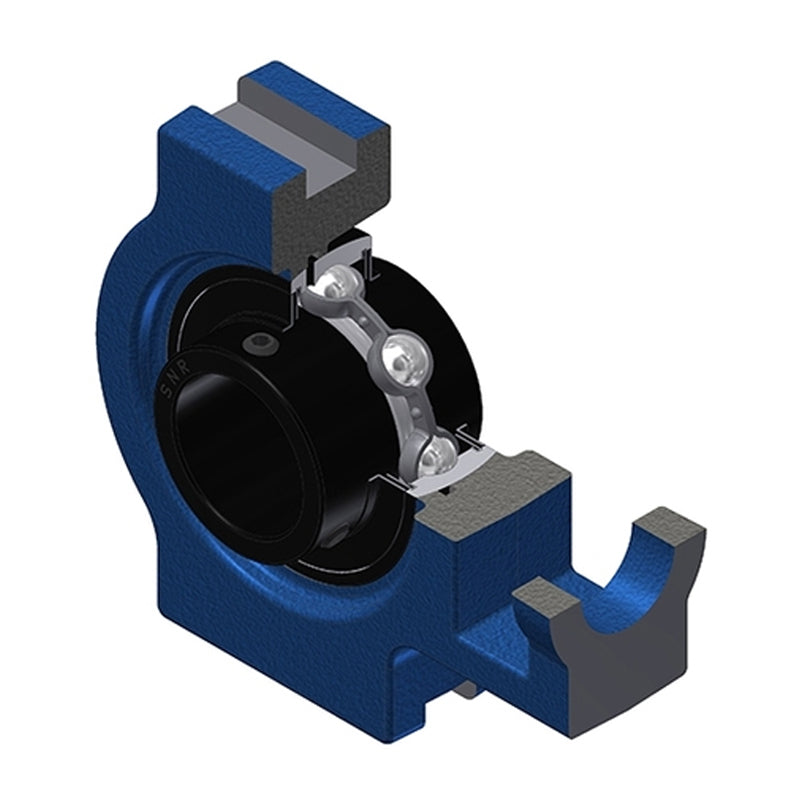

SNR UCT211T20 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit Wide Temperature Version - Allow 2-3 Days
SNR UCT211T20 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit Wide Temperature Version - Allow 2-3 Days
Regular price
€233,95
ex VAT
Regular price
Sale price
€233,95
ex VAT
In stock
Price Break
3+
€197,48
4+
€189,50
9+
€185,51
19+
€179,52
49+
€175,53
99+
€165,56
499+
€139,63
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 38mm |
| B | 55.6mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 35mm |
| N1 | 25mm |
| N2 | 64mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 3.92 kg |
