SKU: UCT212CO-SNR

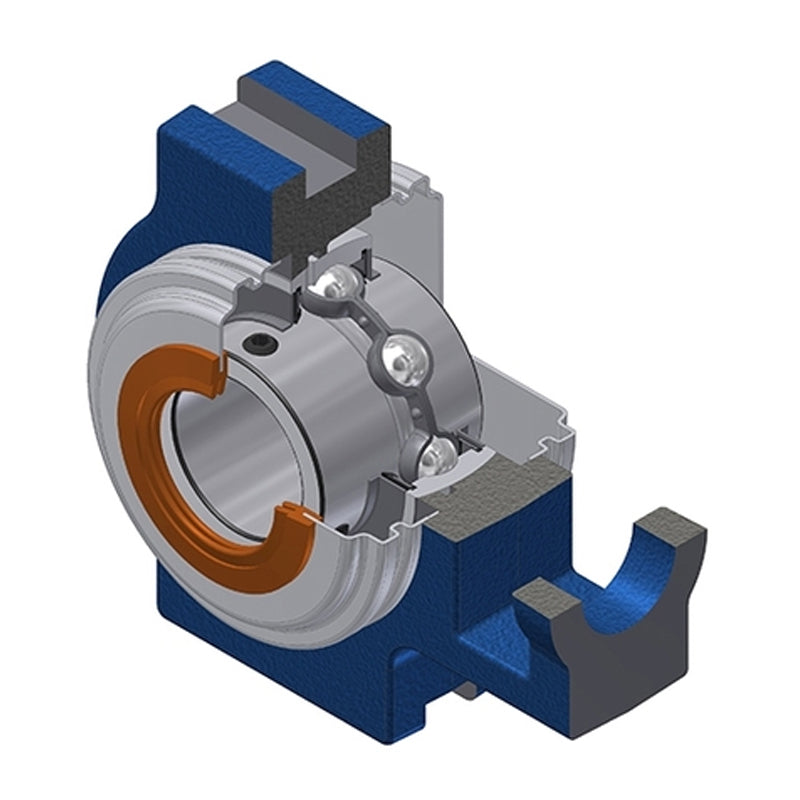

SNR UCT212CO Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCT212CO Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€155,95
ex VAT
Regular price
Sale price
€155,95
ex VAT
In stock
Price Break
3+
€131,63
4+
€126,31
9+
€123,65
19+
€119,66
49+
€117,00
99+
€110,36
499+
€93,07
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 42mm |
| B | 65.1mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 194mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 102mm |
| N | 35mm |
| N1 | 32mm |
| N2 | 64mm |
| S | 25.4mm |
| Dz | 120mm |
| Z | 90mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.936 kg |
