SKU: UCT306D1-NTN

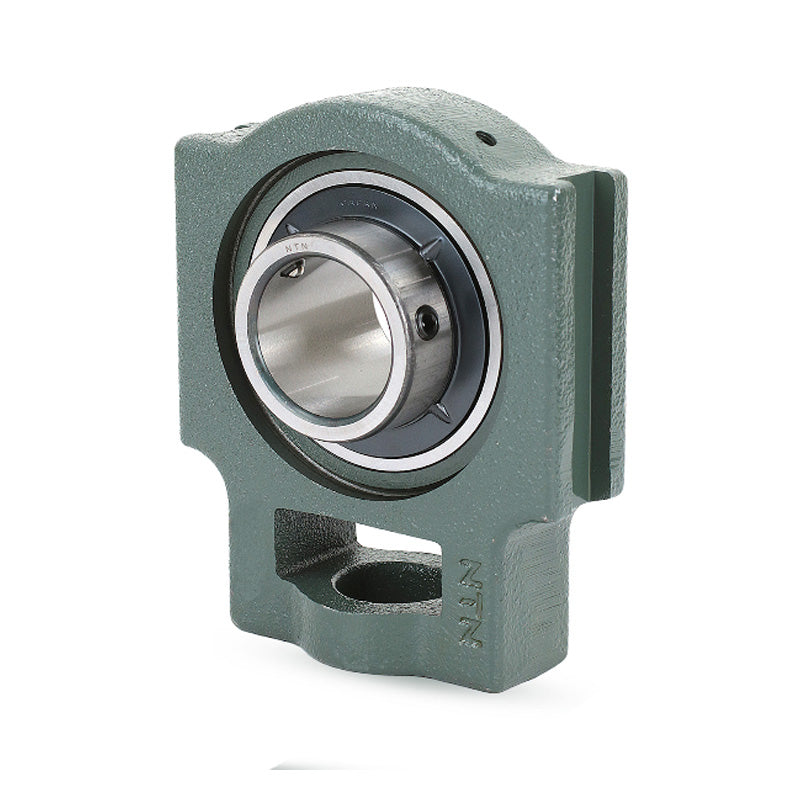

NTN UCT306D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT306D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit - Allow 2-3 Days
Regular price €77,95 ex VAT
Regular price Sale price €77,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,75
4+ €63,09
9+ €61,76
19+ €59,77
49+ €58,44
99+ €55,12
499+ €46,49
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
N<sub>1</sub> 18mm
L<sub>2</sub> 16mm
H<sub>2</sub> 70mm
N<sub>2</sub> 41mm
N 28mm
L<sub>3</sub> 74mm
A<sub>1</sub> 16mm
H<sub>1</sub> 90mm
H 100mm
L 137mm
A<sub>2</sub> 28mm
A 41mm
r 52mm
L<sub>1</sub> 85mm
B 43mm
S 17mm
--- Load rating
Dynamic load C<sub>r</sub> 29.5 kN
Static load C<sub>0r</sub> 15 kN
Fatigue load limit C<sub>u</sub> 1.14 kN
--- Unit information
Mass 18 kg
